Axial SCX24 Deadbolt 1/24th Scale Elec 4WD - RTR, Green

Key Functions:
• Includes radio system, ESC and transmitter batteries
• Includes motor and on-board LiPo battery
• Practical narrow-stance rock spider body in olive green or red
• Molded roll cage with realistic light bar
• Practical motorist figure and lots of other scale information
• Officially certified KMC XD229 Machete Crawl wheels
• Officially certified Nitto Path Grappler M/T tires (S30 compound, large block tread)
• Full-time 4WD
• Splined and sleeved front and rear drive shafts enable maximum suspension travel while keeping the power to the wheels
• Steel front and rear axles, front stub axles and dogbones provide strength and durability
• Rugged steel C-channel frame rails with bracing keep whatever stiff and aligned
• Front and rear axles include a two-piece, molded plastic strong axle design
• 3-Link front and 4-link rear suspension supply optimal handling
• Coil-over shocks with simulated tank and long lasting plastic suspension links deliver proven Axial crawling efficiency
• Front and rear differentials each home a worm equipment setup to power the axles and develop greater ground clearance. Worm equipment drive likewise provides a low equipment ratio to minimize torque twist
• Two LEDs in the front bumper for night driving
The SCX24™ Deadbolt™ 4WD is the very first Axial® off-roader in 1/24 scale. At less than 8” long, it’s the ideal rig to take along on your hiking, camping, and other outdoor and indoor experiences — offering factory-assembled ease, scale looks, and positive handling on any trail.

Even new modelers driving the SCX24 chassis will be fully equipped to tackle tough climbs up and rough tracks. Like the larger SCX10™ chassis, this smaller sized version uses a lot of steel parts — from the C-channel frame rails to the front and rear axles and dogbones. Even over off-road, mountainous, rocky and desert terrain, it has the strength to keep pushing onward and upward.

For the most trusted handling, the SCX24 chassis features a three-link front and four-link rear suspension. The mix of coil-over shocks and long lasting plastic suspension links delivers Axial-worthy crawling efficiency even at this small scale. The worm equipment drive setup permits a high ground clearance plus a low equipment ratio that decreases torque twist.

Powered by a consisted of 180-size motor and LiPo battery, the SCX24 Deadbolt flaunts skills and charm on the tracks. Check out that Deadbolt body — with its narrow position, bulging hood, realistic motorist figure, and molded roll cage with realistic light bar. The realism continues right down to the ground, where you’ll find certified KMC XD229 Machete Crawl wheels wrapped in Nitto Path Grappler tires.

Adding much more to its beginner appeal, the SCX24 Deadbolt comes 100% total and prepared to run. Everything required for action is in package: put together and completed lorry; Axial 2-channel 2.4GHz radio system with servo and ESC/receiver system; Dynamite® 88T brushed electrical motor and 350mAh TWO 7.4V LiPo battery; USB LiPo charger; and even four AA cells for the transmitter!

What's in package?
(1) SCX24™ Deadbolt™ 1/24 Scale 4WD Truck
    (1) Axial AE-6 ESC/receiver combination (set up)
    (1) Dynamite® 88T brushed electrical motor (set up)
    (1) Axial AS-1 guiding servo (set up)
(1) Axial® AX-4 2.4GHz 2-channel radio
(4) AA transmitter batteries
(1) 350mAh TWO 7.4V LiPo battery
(1) USB LiPo charger
(1) Item Manual

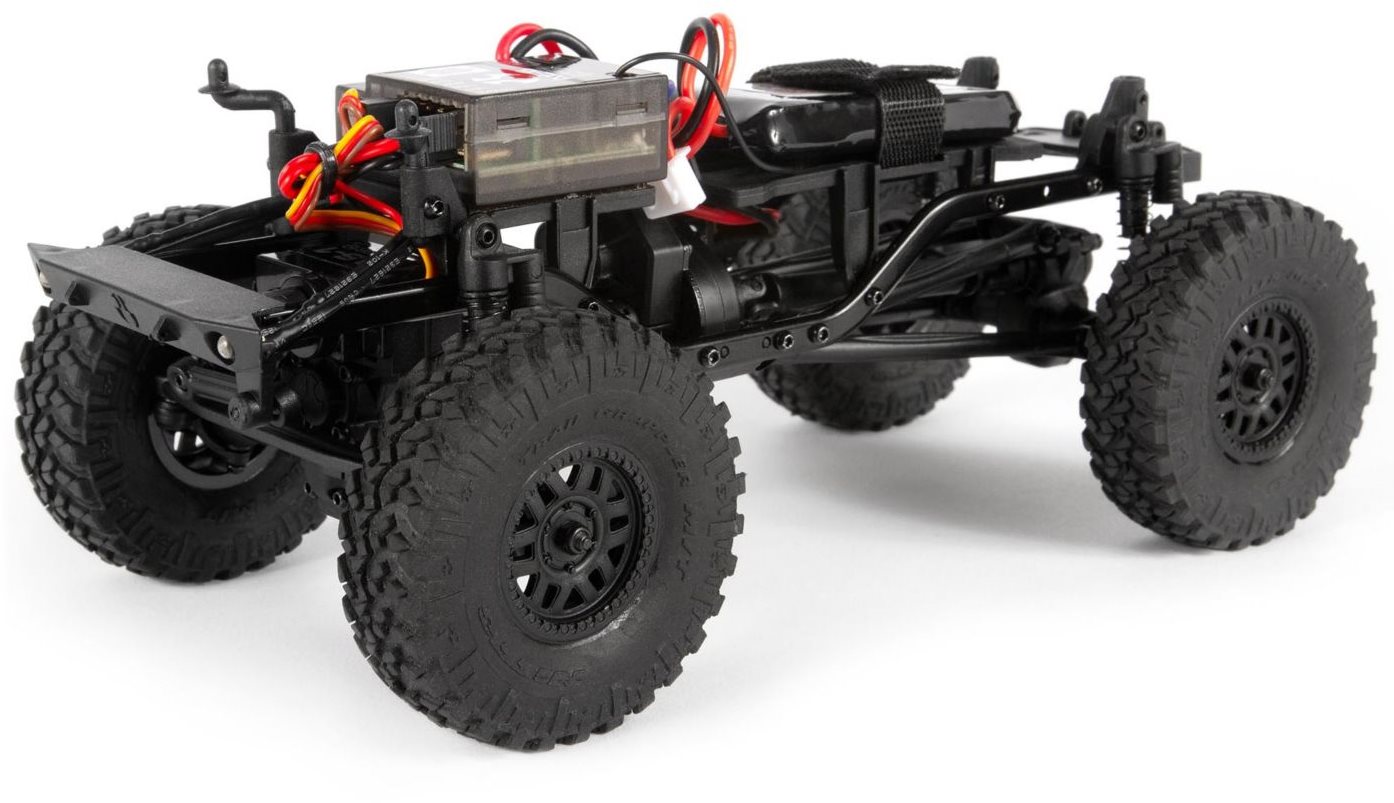

STEEL C-CHANNEL CHASSIS FRAME RAILS
Similar to the 1/10th scale SCX10™ platform, the SCX24™ chassis features rugged and tough steel c-channel frame rails with bracing to keep whatever undamaged and aligned.


DYNAMITE® 88T BRUSHED MOTOR
The Dynamite 88T brushed electrical motor provides the correct amount of torque to assist ascend steep climbs up. It's mated to a steel motor mount to keep flex to a minimum, which assists protect the gears.



WORM GEARS
The front and rear differentials each home a worm screw and worm equipment setup to get the power to the axles and develop greater ground clearance.


DURABLE STEEL AXLES
Steel front and rear axles, front stub axles together with steel dogbones provide strength and durability to keep things running throughout tough climbs up and rough tracks.



SPLINED DRIVE SHAFTS
The front and rear drive shafts are splined and sleeved to enable maximum suspension travel while keeping the power to the wheels.


COILOVER SHOCK ABSORBERS
Even at this small scale, the mix of coilover shocks with simulated tanks and long lasting plastic suspension links delivers the crawling efficiency you've known and anticipate from Axial.



FRONT AND REAR SOLID AXLES
The front and rear axles include a 2 piece, formed plastic strong axle design. For optimal handling, the SCX24™ suspension features a three-link front and four-link rear setup.



LED LIGHTS INCLUDED
Two brilliant LED lights are included and are mounted in the front bumper. An additional LED light port on the ESC enables you to include optional LED lights.


4-LINK REAR SUSPENSION
The suspension geometry utilizes a 4-Link design for the back which is enhanced to minimize axle steer and torque twist. We've likewise included extra suspension links for changing your wheelbase length.



KMC XD229 MACHETE CRAWL WHEELS & NITTO TRAIL GRAPPLER M/T TIRES
Officially certified KMC XD Machete wheels are legendary in the off-road world. They are formed in black and feature sensational scale information, regardless of the small scale.
The formally licensed Nitto Path Grappler M/T Tires offer a wonderful mix of off-road efficiency while still maintaining exceptional composure for on-road usage.


HINGED BODY SYSTEM
The hinged body system provides easy access to on-board parts. You can rapidly reach the battery and chassis by removing simply 2 body clips and swinging the body up.



FULL BALL BEARINGS
Just because the SCX24™ is smaller sized in size doesn't indicate the features require to follow suit. No bushings discovered here, rather the drivetrain is freely spinning on sealed cartridge bearings throughout the entire lorry.


AXIAL AS-1 SERVO
Installed simply above the front axle is the Axial AS-1 servo, with a servo saver that allows for guiding accuracy, while likewise offering defense for the servo gears in case of a bind or impact.


Specs

Type: Spider
Scale: 1/24
Length: 7.8" (199.5mm)
Width: 3.9" (99.5mm)
Height: 4.73" (120.2mm)
Ground Clearance: 1.06" (27mm)
Wheelbase: 5.25" (133.5mm)
Weight: 0.5lb (0.22kg)
Chassis: Stamped steel rails
Suspension: Strong axle, front and rear
Drivetrain: 4WD
Tire Type: Nitto Path Grappler M/T, large block tread
Speed Control: AE-6 ESC receiver/combo
Radio: AX-4 2.4GHz 2-channel
Servos: AS-1 steering servo
Batteries: 7.4V 350mAh 30C LiPo (included)
Battery charger: USB LiPo charger (included)
Gear Pitch: 32-Pitch
Wheel Size: 0.48" (12.4mm) width, 1.0" (26mm) diameter
Kit/RTR: RTR
Shock Type: Plastic body coil-over .9 - 1.3" (24 - 33.4mm)
Body: Painted and trimmed Axial Deadbolt
Ball Bearings: Complete body
Is Assembly Required: No
