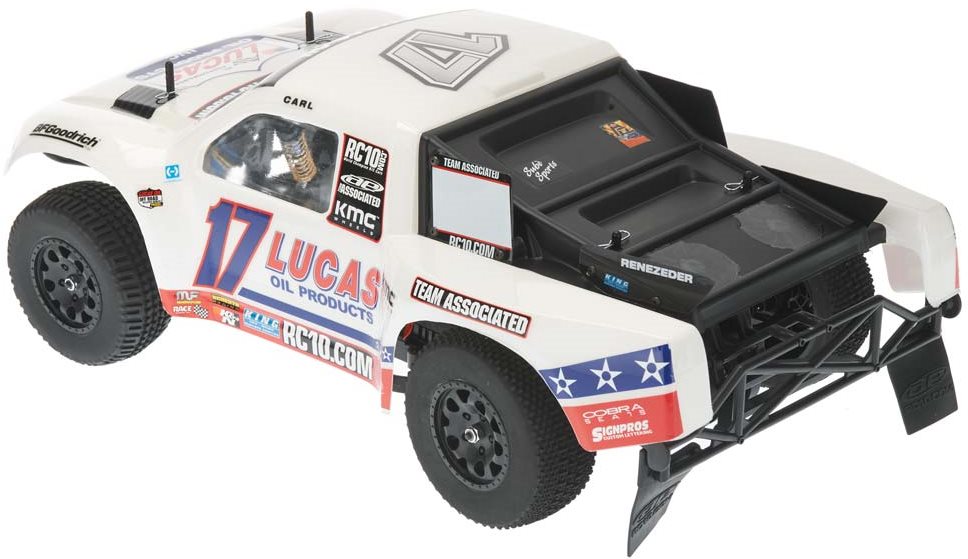

Associated SC10.3 Lucas Oil Brushless RTR LiPo Combo

This is the 2.4GHz Radio Controlled, Brushless Electric Powered, 1/10 scale
Ready to Run SC10.3 Short Course Truck with the Lucas Oil Body,
7.4V LiPo Battery and Reedy 423-S Charger.

FEATURES:

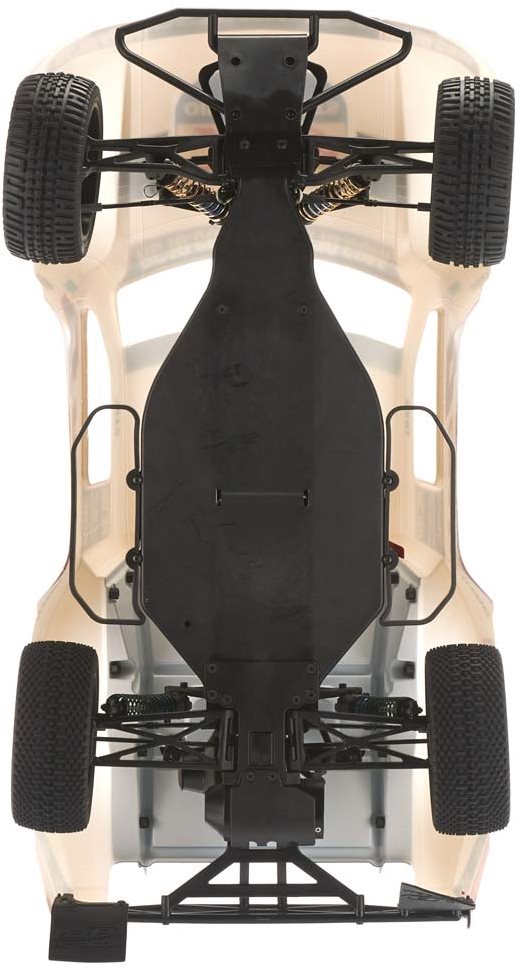

Chassis: Molded composite plastic with low center of mass design
Drive: Rear wheel
Differential: Durable sealed equipment with externally adjustable V2
    slipper clutch
Radio: XP120 2.4GHz 2-channel pistol grip with steering and throttle
    trim and dual rate, metal-gear, high-torque Reedy digital steering
    servo
Motor: Reedy 3300Kv brushless motor
Electronic Speed Control: Water resistant Reedy brushless ESC with
    T-plug battery adapter and low voltage LiPo cutoff
LiPo Battery: Reedy 7.4V LiPo battery with T-plug
Battery Battery charger: Reedy 423-S stabilizing charger
Shocks: V2 coil-over, aluminum body with anodized blue finish
Wheels: Short course KMC reproduction, 12mm hex drive, width 1.6" (41mm),
Diameter: 3" (76mm)
Tires: High traction racing compound
Steering: Angled bellcrank "coplanar" design with essential servo
    saver

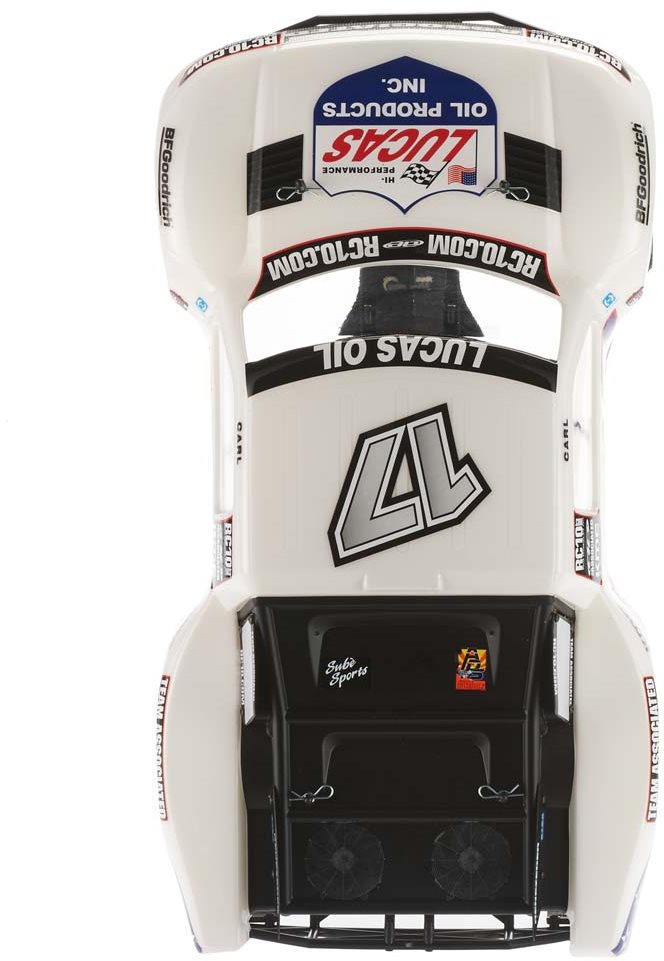

Body: Trimmed and factory finished with the Lucas Oil Carl Renezeder
    trim plan
Suspension: Totally adjustable geometry with steel turnbuckles for
    adjustable camber and front toe-in, vertical ball ends for front
    and rear roll center changes
Caster: Adjustable front and rear, caster/toe-in refers to the angle
    of the front when viewed from the side of the car in relation to
    the chassis
Camber: Adjustable, camber refers to the angle of the tops of the
    tires from vertical when viewed from front or behind vehicle
Ball Bearings: Fourteen rubber sealed
Bumpers: Front and rear composite plastic with AE logo rear mud flaps
Service warranty: 90 day minimal guarantee through Team Associated starting
    at date of purchase

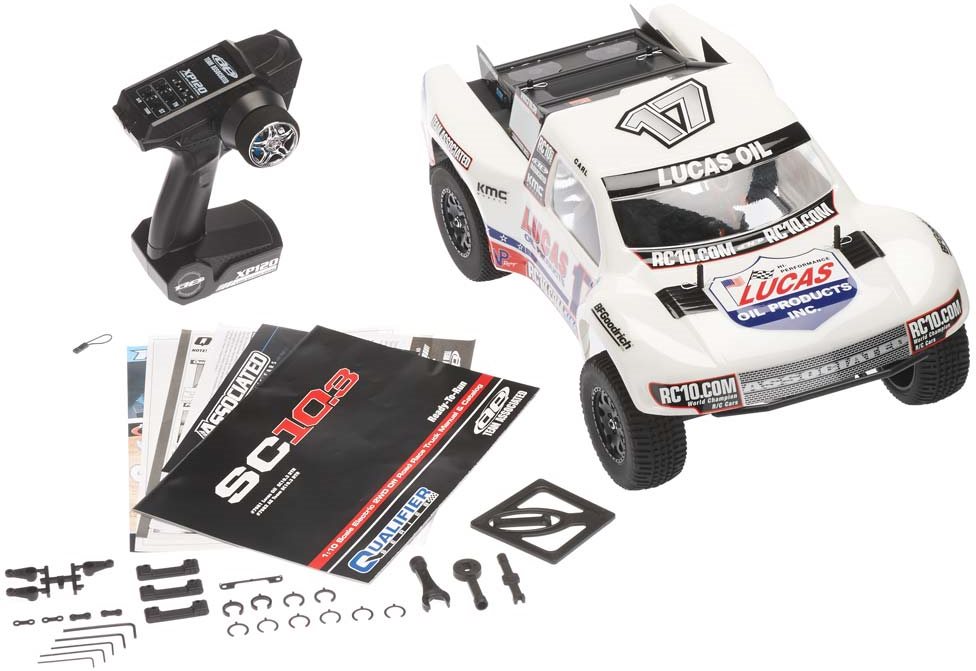

INCLUDES:
RTR SC10.3 Short Course Truck with the Lucas Oil Body, Radio System,
    ESC, Brushless Motor, Reedy 7.4V LiPo Battery, Reedy Balancing
    Battery charger Decals and User's manual

NEEDS:
AA Cells: Four for transmitter
Track and upkeep devices
SPECIFICATIONS:
Car;
Length: 21.65" (550mm)
Width: 11.54" (293mm)
Wheelbase: 12.87" (327mm)
Weight: 4.59pounds (2080g)
Equipment Ratio: 2.6:1
    Body:
Length: 21" (533mm)
Width: 8.8" (224mm) behind front wheels, narrowest point
11.1" (282mm) at rear wheels, best point
Height: 5.9" (149mm)

REMARKS:
Available with the following trim plans;
    Lucas Oil-Carl Renezeder, ASCD7083
    Jhonlin Race Team (JRT)-Doug Mittag, ASCD7084

For Replacement Ball Bearings use:
Qty. Size Area Qty. Bearing Set
    4 3/16x3/8" Steering Knuckles 2 DTXC1423
    2 3/16x3/8" Idler Equipment Shaft 1 DTXC1423
    2 10x16mm Transmission 1 ASCC9832
    4 3/16x3/8" Back Hubs 2 DTXC1423
    2 5/32x5/16" Diff equipment 1 DTXC1411
