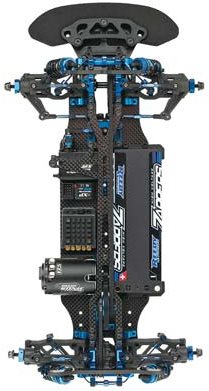

Associated RC10TC7.1 Factory Team Kit

**Additional Technical Info Will Be Added When It Appears.**
This is the Electric Powered, Radio Controlled, 1/10 scale
RC10TC7.1 Factory Group Touring Vehicle Set from Group Associated.

FEATURES:
Chassis: Graphite laminate 0.088" (2.25mm) thick with enhanced
    flex attributes
Drive: Four wheel belt drive, DCV front driveshaft assemblies
Rear Differential: Equipment type
Shocks: Fox shocks with real Kashima coat
Motor Mount: Revamped one-piece, centrally located to produce the
    most consistent chassis flex for predictable cornering
Steering: Upgraded dual bellcrank system with low CG and improved
    Ackermann variety for finest efficiency on any track condition,
    Ackermann refers to the result of the within wheel front wheel
    turning faster than the outdoors front wheel during turns, floating
    steering servo mount
Bumper: Front foam
Turnbuckles: Titanium for strength and light weight
Ball Bearings: Full set, 22 total
Caster: Adjustable, caster/toe-in refers to the angle of the front
    suspension when viewed from the side of the cars and truck in relation to the
    chassis
Camber: Adjustable, camber refers to the angle of the tops of the
    tires from vertical when viewed from front or behind lorry

INCLUDES:
RC10TC7.1 Factory Group Touring Vehicle Set, Shocks, bottle of Silicone
    Shock Fluid and Silicone Diff Fluid, Decal Sheet and Direction
    Handbook

REQUIRES:
Radio: 2-channel with high-speed steering servo
Motor: 540 size brushless
ESC: To match chosen motor
Battery: 3.7V-7.4V LiPo, or 6.0V LiFe
Battery Battery charger: To match chosen battery
LiPo Charging Bag: If using LiPo battery
Pinion Equipment: 48 pitch, variety of teeth to be determimed by motor and
    track conditions
Tires and Wheels: 1/10 scale touring cars and truck
Body: 1/10 scale polycars and truckbonate touring car
Paint, building and track equipment

SPECIFICATIONS:
Length: 14.17" (360mm)
Width: 7.48" (190mm)
Wheelbase: 9.9 - 10.1" (253.5 - 257.5mm)
Internal Equipment Ratio: 2.0:1
Weight: 1.12lbs (508g)

COMMENTS:
For Replacement Ball Bearings usage:
    Qty. Size Place Qty. Bearing Set
2 10x15mm Fr Spindle 1 DTXC1595
2 10x15mm Back Diff 1 DTXC1595
4 4x7mm Steering 2 DTXC1507
1 4x8mm flanged Spur Equipment 1 DTXC1517
4 5x10mm Fr Uprights 2 DTXC1535
4 5x10mm Back Uprights 2 DTXC1535
