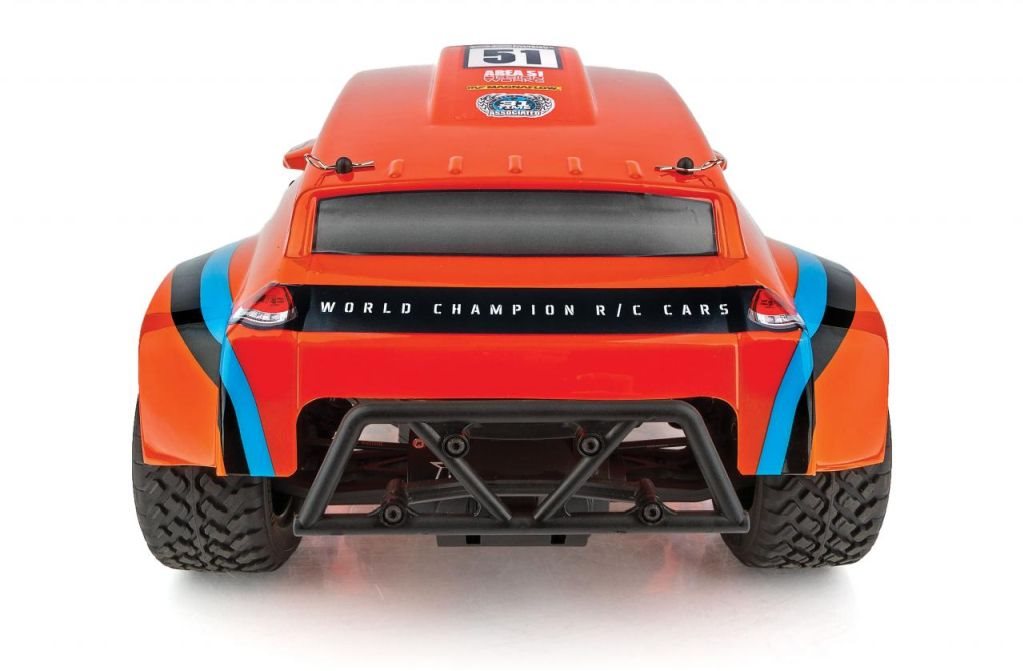

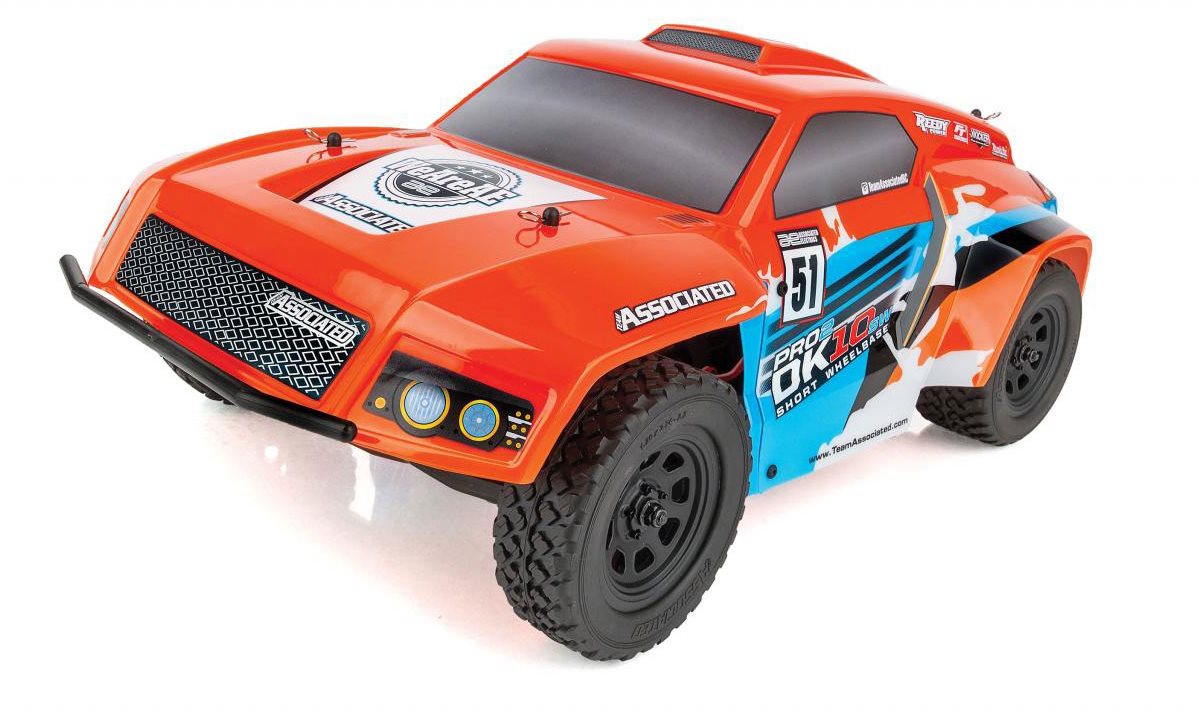

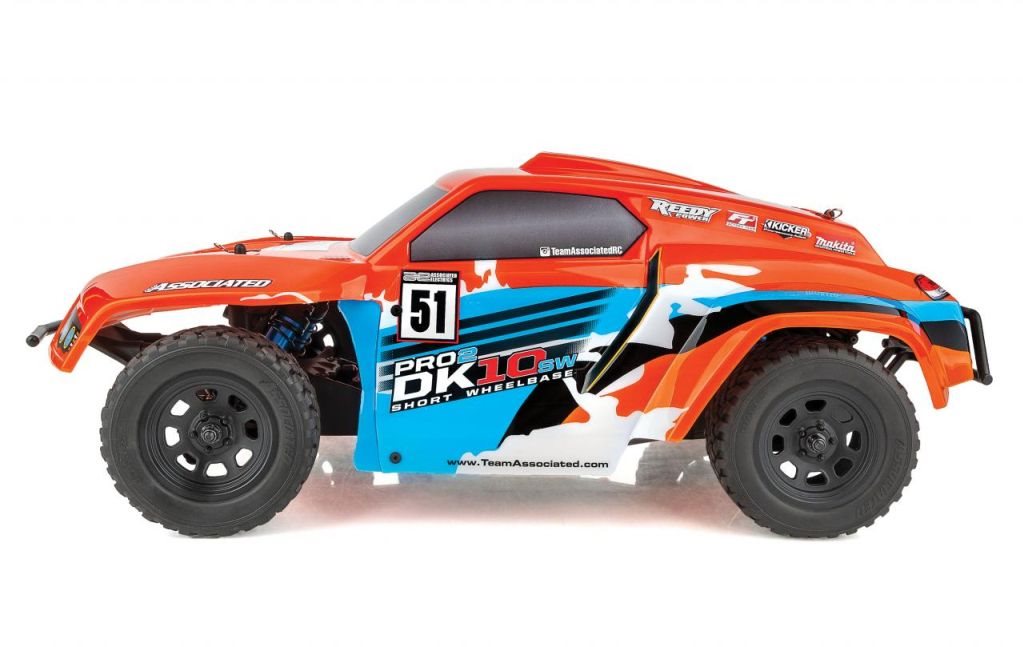

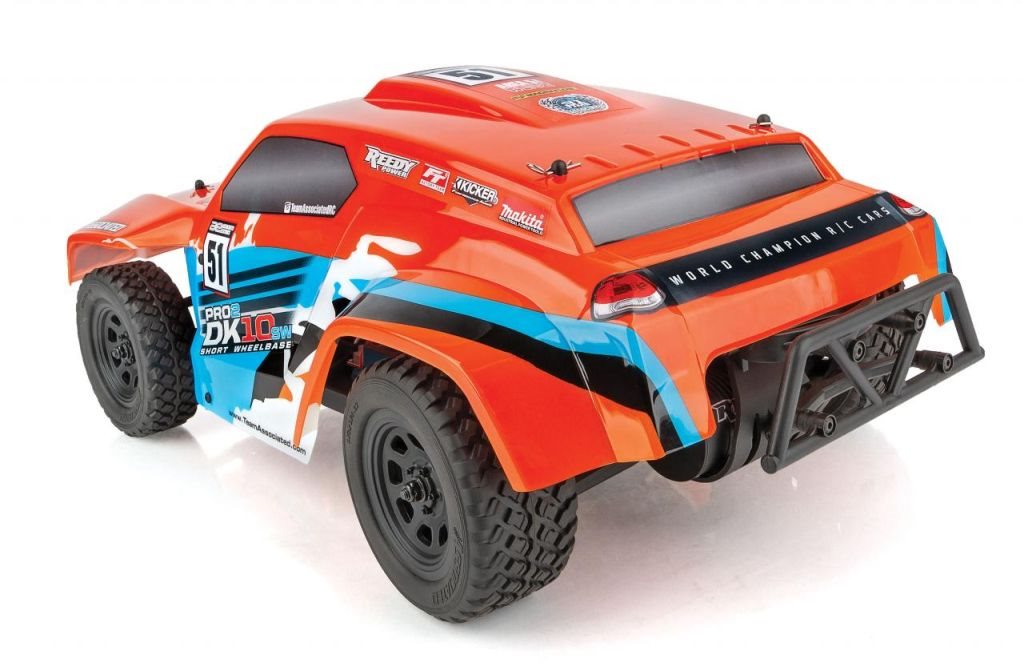

Pro2 DK10SW 1/10 Electric Dakar Buggy RTR, Orange/Blue

The Pro2 DK10SW Dakar Buggy is based on the 9-time ROAR Short Course National Championship-winning trucks, featuring a water-resistant high-power Reedy Power brushless speed control and 3300kV brushless motor, a 2.4GHz 2-channel radio system as well as our DVC (Dynamic Vehicle Control) receiver unit with built-in adjustable digital gyro. Add to that a Reedy Power metal-gear, digital high-torque servo and a water-resistant enclosed receiver box. All of this packaged together in an outstanding factory-finished orange and blue body. And to keep you sticking to the terrain, this DK10SW short wheelbase beast will keep you cornering with the included high-grip, all-terrain tires and lightweight wheels. The time for tearing up the track is now!

Team Associated's Pro2 DK10SW Dakar Buggy is a detailed and fun-to-drive Ready-to-Run RC buggy that features some of the latest features in racing. A durable lightweight aluminum top shaft, rugged steel turnbuckles and adjustable suspension geometry give the Pro2 DK10SW the ultimate in handling on all terrain. This makes it a perfect platform for racing!

Required to Complete:

• #90038, 90038C: Four AA batteries for radio
• #90038: Suitable 6-cell NiMH or 2S/3S LiPo battery with T-type connector for vehicle
• #90038: Charger suitable for chosen battery
• #90038, 90038C: Other helpful items: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors (#1737), Reamer / Hole Punch, FT Wrench Set (#1519), Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers or a Precision Ruler

Features:

• Durable and lightweight aluminum top shaft

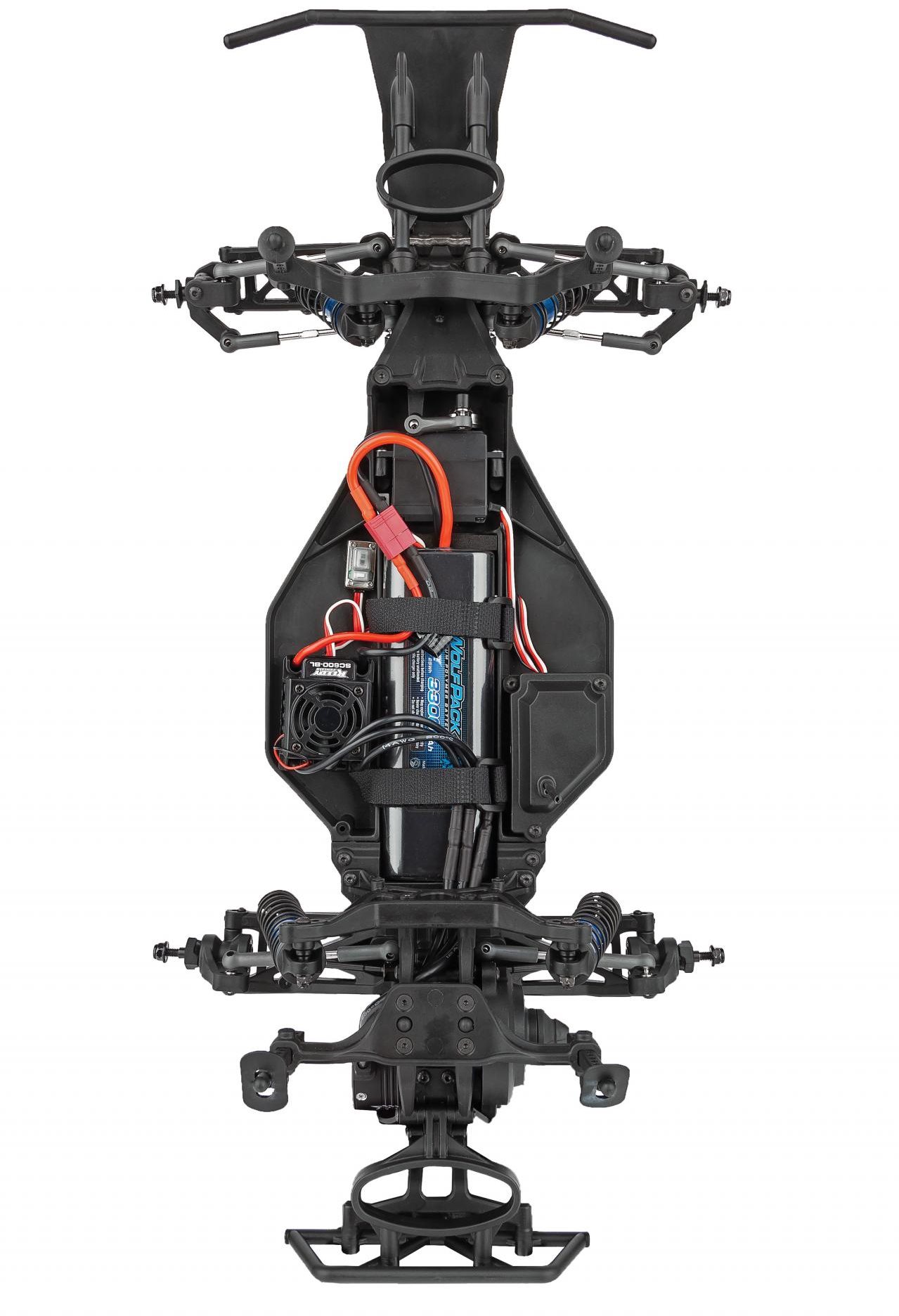

• Low center-of-gravity molded composite chassis with hook-and-loop battery straps that accommodate both 6-cell NiMH and 2S and 3S LiPo battery packs with T-type connector
• Metric hardware throughout
• 22 precision rubber-sealed ball bearings
• Impact-absorbing front and rear bumpers
• Adjustable body mounts
• Rear CVA drive shafts for more reliability
• Aluminum 12mm big bore coil-over shock absorbers
• 2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable slipper clutch
• Rugged steel turnbuckles for adjustable camber and front toe-in
• Adjustable suspension geometry
• Vertical ball ends for roll center adjustments, front and rear

Specifications:

• Power Source: Electric
• Terrain: Off-Road
• Body Style: Buggy
• Scale Size: 1:10 Scale
• Assembly Level: Ready-To-Run*
• Length: 492.4mm (19.39in)
• Width: 252mm (9.92in)
• Wheelbase: 277.8mm (10.94in)
• Weight: varies
• Internal
• Gear Ratio: 2.6:1
• Drive: 2WD

* This vehicle is fully assembled and ready to run right out of the box. Some models may require a battery and/or charger.
