Associated JRT SC10.3 Brushless RTR

**Extra Technical Details Will Be Added When It Appears.**

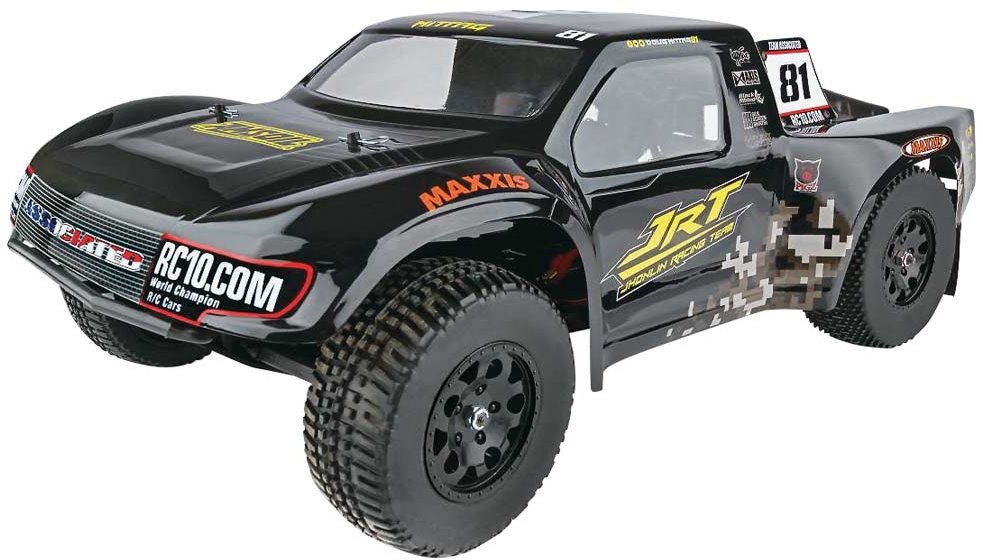

This is the 2.4GHz Radio Controlled, Brushless Electric Powered, 1/10 scale
All set to Run SC10.3 Short Course Truck with the JRT Body.

FEATURES:
Chassis: Molded composite plastic with low center of gravity design
Drive: Rear wheel
Differential: Heavy-duty sealed gear with externally adjustable V2
    slipper clutch
Radio: 2.4GHz 2-channel pistol grip
    with metal-gear, high-torque Reedy digital steering servo
Motor: Reedy 3300Kv brushless motor
Electronic Speed Control: Water resistant Reedy brushless ESC with
    T-plug battery connector and low voltage LiPo cutoff
Shocks: V2 coil-over, aluminum body with anodized blue surface
Wheels: Short course KMC reproduction, 12mm hex drive, width 1.6" (41mm),
Diameter: 3" (76mm)
Tires: High traction racing substance
Steering: Angled bellcrank "coplanar" design with essential servo
    saver
Body: Cut and factory completed
Suspension: Totally adjustable geometry with steel turnbuckles for
    adjustable camber and front toe-in, vertical ball ends for front
    and rear roll center adjustments
Caster: Adjustable front and rear, caster/toe-in describes the angle
    of the front when seen from the side of the automobile in relation to
    the chassis
Camber: Adjustable, camber describes the angle of the tops of the
    tires from vertical when seen from front or behind lorry
Ball Bearings: Fourteen rubber sealed
Bumpers: Front and rear composite plastic with AE logo design rear mud flaps
Warranty: 90 day restricted guarantee through Team Associated beginning
    at date of purchase

CONSISTS OF:
RTR SC10.3 Short Course Truck with the JRT Body, Radio System, ESC,
    Brushless Motor, Decals and Instruction Manual

NEEDS:
Battery: 6-cell sub-C, or 2-cell LiPo battery
Battery Charger: Suitable with selected batteru
AA Cells: 4 for transmitter
Track and upkeep devices

SPECIFICATIONS:
Car;
Length: 21.65" (550mm)
Width: 11.54" (293mm)
Wheelbase: 12.87" (327mm)
Weight: 4.59pounds (2080g)
Gear Ratio: 2.6:1
    Body:
Length:
Width:
Height:

COMMENTS:
Readily available with the following trim plans;
    Lucas Oil-Carl Renezeder, ASCD7081
    Jhonlin Race Team (JRT), Doug Mittag, ASCD7082

For Replacement Ball Bearings usage:
Qty. Size Location Qty. Bearing Set
    4 3/16x3/8" Steering Knuckles 2 DTXC1423
    2 3/16x3/8" Idler Gear Shaft 1 DTXC1423
    2 10x16mm Transmission 1 ASCC9832
    4 3/16x3/8" Rear Hubs 2 DTXC1423
    2 5/32x5/16" Diff gear 1 DTXC1411
