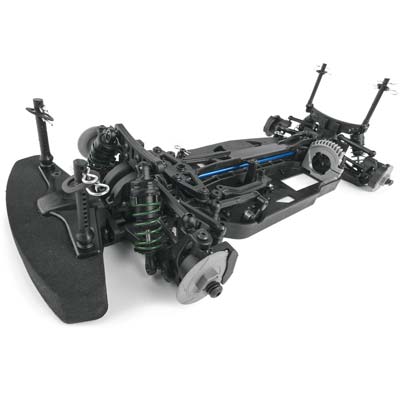

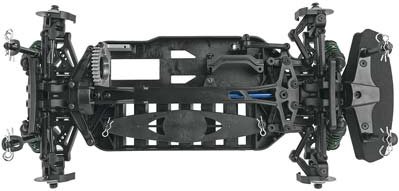

Associated Apex Touring Kit

This is the Electric Powered, Radio Controlled
1/10 scale On-Road Pinnacle Touring Car Kit from Team Associated.
For Drivers 14 Years of Age and Older.

FEATURES:
Chassis: Composite plastic modular design
Own: Four wheel shaft drive, front & rear steel CVA drive axles
Differentials: Sealed metal gear
Shocks: Plastic body
Shock Towers: Composite plastic, oil-filled
Front Bumper: Foam
Spur Equipment: Plastic, 66 tooth 48 pitch
Steering: Ball bearing supported bellcrank
Caster: Non-adjustable, caster/toe-in refers to the angle of the
    front suspension when viewed from the side of the cars and truck in relation
    to the chassis
Camber: Non-adjustable, camber refers to the angle of the
    tops of the tires from vertical when viewed from front or
    behind vehicle

CONSISTS OF:
Pinnacle Touring Car Kit with Shocks, Spur Equipment, Decals, 35wt Shock Oil
    Aluminum Motor Mount and Instructions

NEEDS:
Motor: For 1/10 scale touring cars and truck
ESC: Compatible with selected motor
Radio: 2-channel with high-speed steering servo
Battery: 2-cell LiPo or 6-cell NiMH
Battery Battery charger: Compatible with selected battery
Pinion Equipment: 48 pitch, variety of teeth to be figured out by motor and
    track conditions
Body: 1/10 scale touring cars and truck
Tires: 1/10 scale touring cars and truck
Wheels: 1/10 scale touring cars and truck
Paint, tire glue, building and track equipment

SPECS:
Wheelbase: 10.2" (259mm)
Internal Equipment Ratio: 2.615:1
Length: 17.24" (438mm)
Width: 7.48" (190mm)
Weight: 3.38lbs (1760g)

REMARKS:
For Replacement Ball Bearings use:
    Qty. Size Location Qty. Bearing Set
2 8x14mm Fr Diff 1 DTXC1583
2 8x14mm Rear Diff 1 DTXC1583
2 5x11mm Fr Gearbox 1 DTXC1547
4 5x8mm Steering 2 DTXC1523
4 10x15mm Steering Blocks 2 DTXC1595
4 10x15mm Rear Center Provider 2 DTXC1595
2 5x11mm Input Shafts 1 DTXC1547
