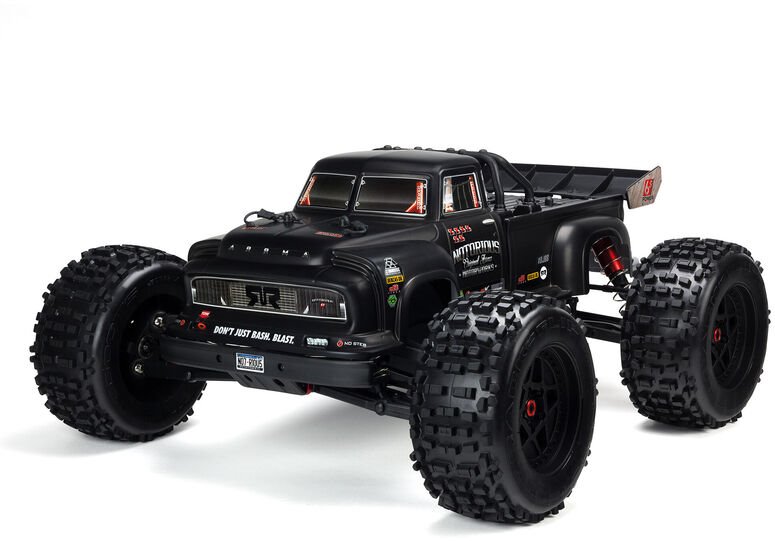

ARRMA NOTORIOUS 6S 4WD BLX 1/8

.mediaFeature [cushioning:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



Introduction
The 1/8 scale NOTORIOUS™ SIX BLX Stunt Truck 4WD unleashes wheelie-popping, back-flipping, outrageous action with unique design. Its custom 1950s body offers more than streamlined good looks and a matte black or matte blue factory surface. Its special ARRMA® "Real Steel" effect adds appealing realism that only enhances with serious slamming. The more scratched and scarred your Stunt Truck ends up being, the more genuine and incredible it looks.





Features

Ready-to-run

Spektrum™ SLT3™ 2.4GHz 3-Channel Radio

Spektrum™ SR315 Double Procedure 3-Channel Receiver

Spektrum™ S652 Digital Servo

Spektrum™ Firma™ 150A Smart ESC

Spektrum™ Firma™ 4074 2050Kv Brushless Motor

More powerful chassis design

EXB suitable front brace

Heavy-duty arms front and rear

Upgraded Rear shock tower geometry

Big volume waterproof* receiver box

Anodized aluminum chassis

Strong composite chassis side pods

Center body support and brace for optimum sturdiness

Internal body protection roll bar

High downforce wing

Wheelie bar

Oil-filled adjustable shocks

Black-anodized aluminum front and rear shock towers

Long lasting steel driveshafts throughout

Heavy-duty drivetrain

All-metal diff outdrives and gearbox internals

Never-loose red aluminum servo saver

Never-pop ball ends

5-Bolt center diff elimination

Easy-access sliding motor mount for quick motor elimination

Hub nut O-rings

Super-durable wheel hubs for increased strength

Hard stunt truck wheels

Multi-terrain dBoots® BACKFLIP™ tires

"Real Steel" effect body for boosted realism

IC5® adapters (EC5™ suitable)

2-year restricted warranty (see handbook for information)

*For information on waterproof requirements, please refer to the product instruction manual






Overview
From its heavy-duty front bumper through the short wheelbase chassis to the wheelie bar in back, the NOTORIOUS™ 6S BLX 4WD is crafted to make you a stunt superstar. Its stiff roll cage and underbody will take all type of punishment and return for more. The NOTORIOUS™ 6S BLX 4WD can do it all: long, high wheelies…tight, quick donuts…standing and aerial backflips…high leaps into the air…and more.
For the power to perform that sort of stunt action, ARRMA® now gears up the NOTORIOUS™ 6S BLX 4WD with a potent, 6S-capable brushless system including the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination lets you let go with unbelievable torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission elements take it all in its stride. For enhanced steering, ARRMA® likewise includes a new, steel equipment Spektrum™ S652 Digital Servo — which is 32% more powerful and 5% faster than the previous version's ADS-15M servo. Thanks to waterproof electronic devices, slamming is a "go" even through mud and snow. Simply include your favorite four or six LiPo battery.
The ready-to-run Stunt Truck now likewise includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual procedure receiver. Perfect for long hours of fatigue-free slamming, the transmitter's ergonomic design includes a foam steering wheel for precise fingertip control and a better hand grip and trigger feel. If you're a new chauffeur, you'll have the ability to set throttle limits at 50% or 75% until you're prepared to use the complete speed capacity. The SLT3™ is compatible with Strategy® SLT™ receivers to run other RTR lorries you may own, and includes a 3rd channel to manage optional functions such as lights and winches on models that have them.
Because the SR315 receiver can use SLT™ and DSMR® procedures, you can easily upgrade to a Spektrum™ DSMR® transmitter later on — then, download the free Spektrum™ Dashboard™ app for your mobile phone and take complete advantage of the Smart telemetry capabilities already present in the Firma™ electronic devices. You'll have the ability to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.
With adjustable 16mm oil-filled shocks on aluminum towers absorbing bumps, the NOTORIOUS™ 6S BLX 4WD Stunt Truck blasts over dirt, asphalt, and turf — over all terrain, in all conditions. Its hard stunt truck wheels come equipped with multi-terrain dBoots® BACKFLIP™ tires that offer all the traction you'll require to flip, grip, wheelie and spin. A high downforce wing assists keep the vehicle grounded. Everything about the NOTORIOUS™ 6S BLX 4WD contributes to confident control and responsive handling at exhilarating high speeds.
For the toughness required to support extreme stunts, ARRMA® uses a strengthened anodized aluminum chassis as the foundation. A center body support and aluminum center brace plus composite chassis side pods include more sturdiness. All-metal diff outdrives and gearbox internals plus durable steel driveshafts offer a dependable, heavy-duty drivetrain that holds up to extreme stunts and high-speed slamming. A "never loose" aluminum steering servo saver and "never pop" ball ends supply more accuracy, reliability and confidence.
ARRMA® keeps your maintenance downtime to the minimum by giving the NOTORIOUS™ SIX BLX 4WD an efficient, driver-friendly design. A moving mount allows quick, hassle-free motor access. The center diff is simple to reach and can be gotten rid of by securing just 5 bolts.












STANDING BACKFLIP?
No Problem. The NOTORIOUS SIX turns for enjoyable.




CATCH THE DRIFT
Can you manage this much power long enough?








UPDATED CHASSIS DESIGN
Broader rear area and 3D type presented in key areas to significantly improve strength.




UPDATED REAR SUSPENSION GEOMETRY

Upgraded rear shock tower geometry operates in conjunction with upgraded rear suspension arm geometry to offer a plusher rear end

More compact rear shock tower, being less exposed, is better protected from being bent throughout upside-down effects









FRONT PIVOT BALL SUSPENSION
For precise handling at leading speeds




QUICK MAINTENANCE
5 bolt center diff elimination for simple access








SPEKTRUM® SMART TECHNOLOGY INCLUDED
FIRMA™ 150A SMART Brushless ESC and FIRMA™ 4074 2050Kv Brushless Motor




GO LARGE
Big volume waterproof receiver box








RUBBER SHIELDED BEARINGS
Longer life, less maintenance




OPTIONAL SPEED PINION INCLUDED
Red anodized motor mount and Mod 1 spur and pinion equipments to deal with maximum performance.








FIRMA™ 150A SMART Brushless ESC

Water resistant* and dustproof design

150A, six LiPo prepared (THREE, 4S & six LiPo suitable)

Spektrum® SMART Technology

Fitted with trustworthy IC5® adapters (EC5™ suitable)

Integrated fan for reduced heat throughout extreme running

High quality 10awg wires

Low voltage cut off and thermal overload protection

User programmable punch, brake, BEC, reverse speed and motor timing settings

*For information on waterproof requirements, please refer to the product instruction manual




FIRMA™ 4074 2050Kv Brushless Motor

2050Kv 4074 size six brushless motor

Magnificently etched aluminum can

4-pole construction for smooth and consistent power

4mm gold bullet adapters for trustworthy and effective connection

Black anodized aluminum motor can for increased heat dissipation

Super strong 5mm shaft

Groove at the end of the motor shaft allows the setup of a pinion retaining E-Clip









SPEKTRUM® SLT3® RADIO

Superb SLT reaction rate

50% and 75% throttle restricted switch - great for novices

Steering & throttle rate & trim adjustments with throttle and steering reversing

Foam wheel grip

Compatible with Strategy Receivers





SPEKTRUM® SR315 RECEIVER

Double Procedure - Compatible with SLT and DSMR® 2.4GHz procedure transmitters

Fast reponse rate and outstanding variety

No tool binding and procedure switching

Wise telemetry suitable (in DMSR mode and with SPEKTRUM control panel app)

3-Channels











SPEKTRUM® SPMS652 DIGITAL SERVO

All Steel Gears

Water resistant*

19.08kg-cm/265oz-in Torque @7.4V

32% More Torque & 5% Faster than ADS-15M Servo

*For information on waterproof requirements, please refer to the product instruction manual





Specifications

Approximate Assembly Time: No assembly required

Ball Bearings: Full set

Battery: Sold Separately

Body: Painted, trimmed and decaled

Brakes: User programmable

Charger: Sold Separately

Chassis: 0.12" (3mm) 6061-T6 aluminum

Color Alternative: Black

Completion Level: Ready-To-Run

Differential: Front center and rear geared differentials

Drive Type: Forward/Brake/Reverse

Drivetrain: 4WD

Last Drive Ratio: 17.92

Front Shock Spring Rate: 5.0lbs/in (0.87n/mm)

Front Track: 18.15" (461mm)

Gear Pitch: 1.0MOD

Internal Gear Ratio: 4.3

Motor Size: 4074

Motor Type: Brushless

Pinion: 12T

Power Type: Electric

Item Height: 9.06" (230 mm)

Item Length: 21.26" (540 mm)

Item Weight: 11.37lbs (5.17kg)

Item Width: 18.15" (461 mm)

Radio: Consisted of

Rear Shock Spring Rate: 6.2lbs/in (1.09n/mm)

Rear Track: 18.15" (461mm)

Receiver: Consisted of

Scale: 1/8

Servos: Consisted of

Shock Type: Aluminum body oil-filled adjustable

Speed: 60+

Speed Control: Consisted Of

Spur Gear: 50T

Suspension: Independent

Tire Tread: dBoots BACKFLIP

Tire Type: Multi-terrrain

Automobile Type: Stunt Truck

Waterproof: Yes

Wheel Type: MT, 3.8" (97mm) diameter

Wheel Width: 3.0" (77mm)

Wheelbase: 12.91" (328mm)
