ARRMA 1/10 OUTCAST 4X4 4S V2 BLX Stunt Truck RTR, Blue

$include('Page-Include', 'cid', 'CL-pdp-message-ARA4408V2-ARA4410V2')$



.mediaFeature [cushioning:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



New Features

17% Larger footprint – longer and wider than the previous castaway™ 4X4 four platform for added stability

Hard new suspension arms that increase lorry width

Resilient steel 1.35 module main diff equipments and input equipments in the front and rear gearboxes

Strong CVD telescopic driveshafts front and rear

Higher shock towers, longer shocks and wider suspension arms for longer, more plush suspension travel

Aluminum big bore shocks included as basic

CNC machined, red anodized 17mm wheel hubs

Steel slipper center strengthening ring

Spektrum™ Firma™ 120A brushless ESC and 3668 2400Kv motor

Spektrum™ 2.4GHz SLT3™ transmitter and SR315 receiver

Spektrum™ S652 Steel Metal-Geared, waterproof digital servo with 232 oz-in of torque

Sway bars fitted front and back for improved cornering dynamics

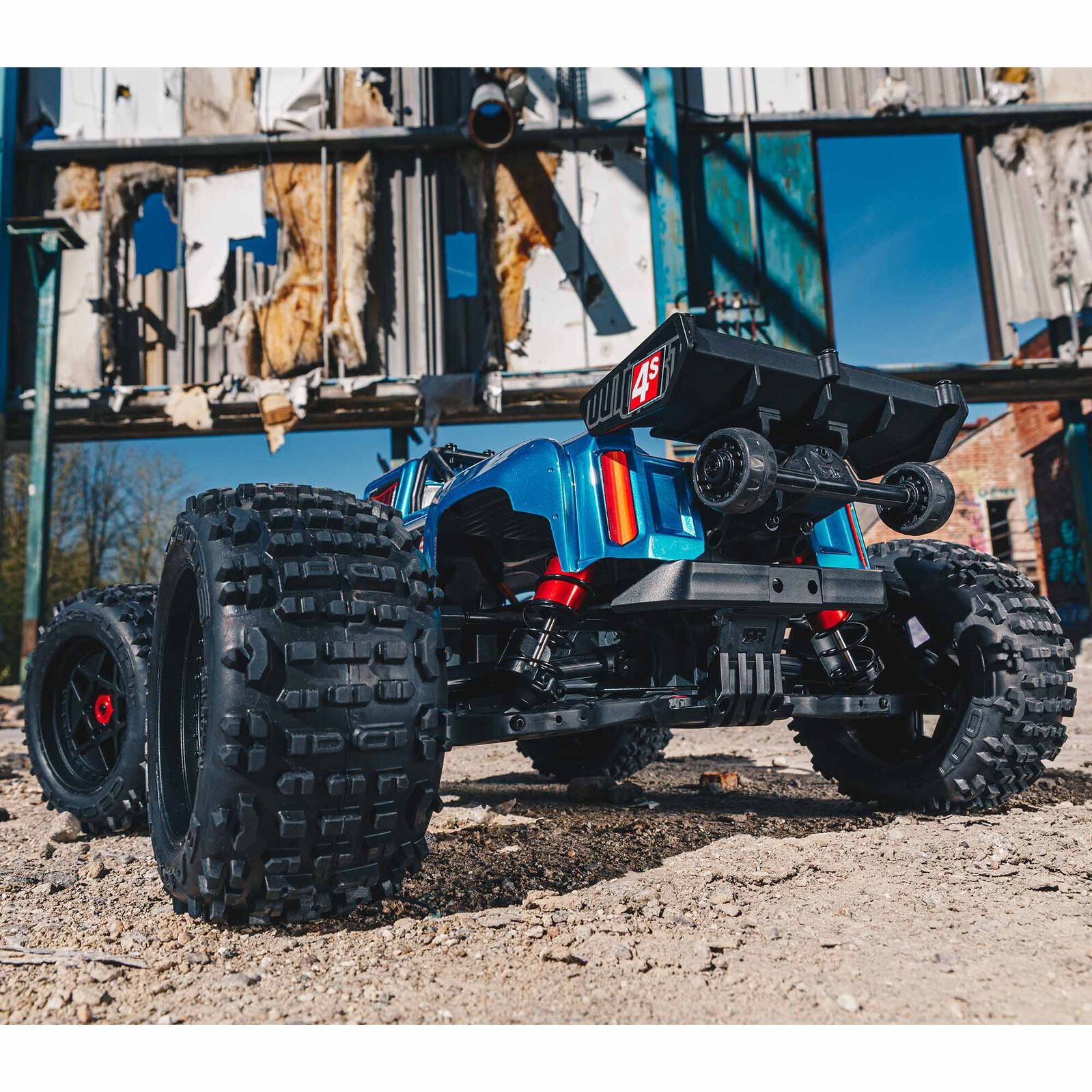

Wheelie bar with rubber tires




Proven 4X4 Platform Features

Rubber shielded bearings

Metal internal-geared diffs

Steel stimulate gear

Strong composite chassis with extended height dirt defenders

Adjustable turnbuckles

Steering system with stone clearance

ARRMA® motor heatsink and cooling fan

Easy-access modular design — power, diff and electronic devices modules can be removed quickly and easily for maintenance

Battery retention system including wire clips

2-Year minimal service warranty (see website assistance for details)

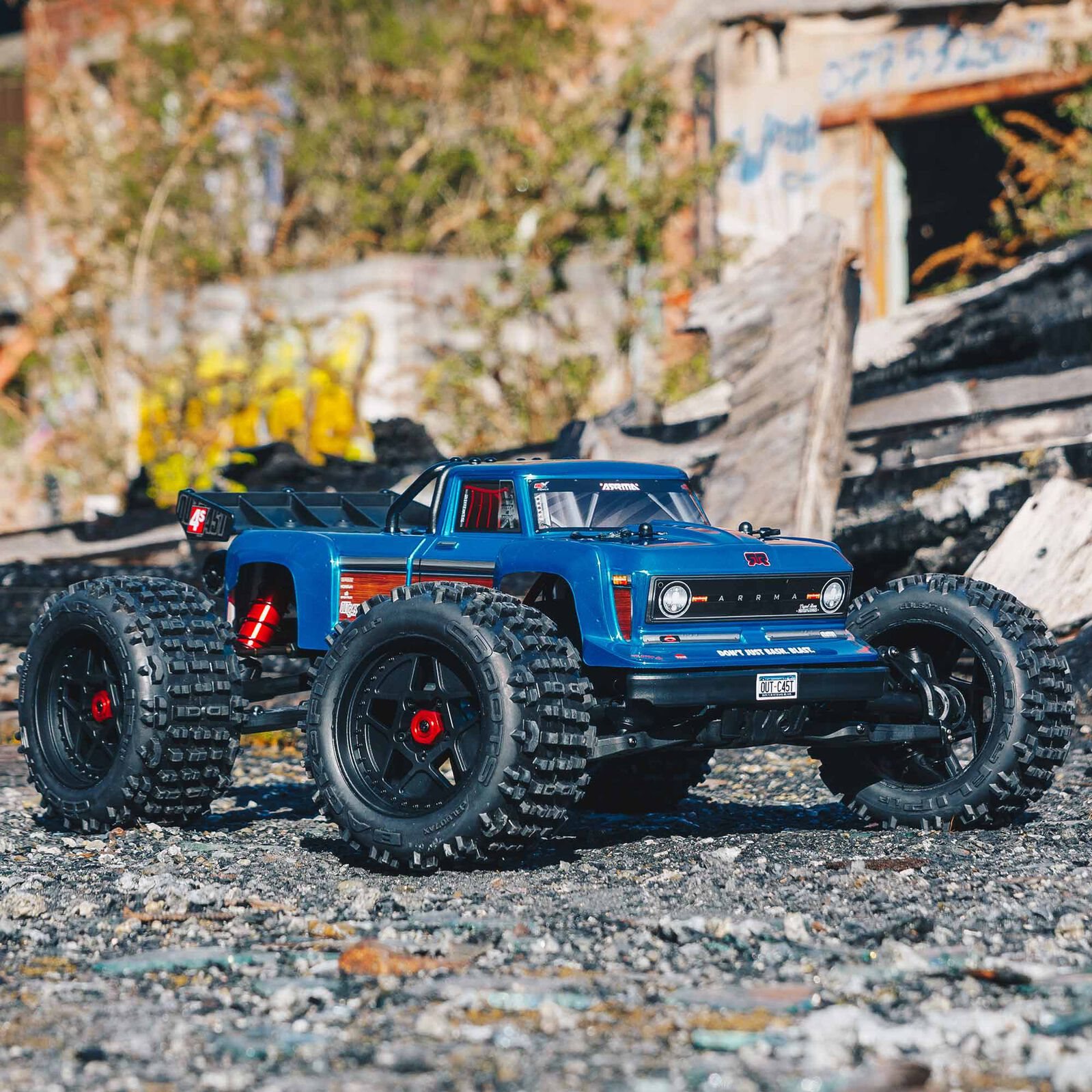

A larger, tougher castaway™ 4X4 4S BLX
The original ARRMA® CASTAWAY™ 4X4 4S BLX Stunt Truck supplied the ideal happy medium in between the nimble 3S BLX lorries and bigger, more effective 6S BLX devices. It provided cost effective, full-scale stunt performance for brushed bashers aiming to update and for any chauffeur desiring ARRMA® toughness and speed.

This new variation marks the next evolution of the capable ARRMA® 4X4 four platform — longer, wider, and tougher than the previous chassis for even greater stability and control. It likewise includes a complete plan of Spektrum™ radio electronic devices and is the first ARRMA® 4x4 to come equipped with a Spektrum™ four brushless power system.

The footprint of this castaway™ 4X4 4S BLX Stunt Truck is 17% larger than the previous model, with higher shock towers, longer shocks, and wider suspension arms for longer, more plush suspension travel. The strength of the transmission has been strengthened with the inclusion of steel transmission input equipments, steel main diff equipments and CVD Driveshafts. Upgrades are signed up with by proven functions from prior to that provide unstoppable performance in environments ranging from off-road, dirt, and lawn to parking area, paved and asphalt surfaces. These include a strong composite chassis and retained hinge pin plates; protective skid plates in front and back; guiding with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber-shielded bearings throughout. The castaway™ 4X4 4S BLX likewise includes the signature ARRMA® easy-access modular design to make regular maintenance quickly and simple.

Durable, low-profile dBoots® Back-Flip tires with medium-compound foam inserts offer an aggressive tread pattern for exceptional traction on a wide range of surfaces. The classic truck body has a difficult, injection-molded rear wing and comes factory-finished in your choice of two exciting colors. Front and rear bumpers secure against impacts and a wheelie bar with rubber tires provides stunt potential.

Completing the ready-to-run plan are a Spektrum™ SLT3™ 2.4GHz radio with SR315 receiver and a stronger, much faster Spektrum™ S652 digital servo. Add your choice of battery, battery charger, and "AA" transmitter batteries and celebration with the very best!









Under The Hood














LONGER CHASSIS
For this new variation of the castaway™ 4x4 4S BLX Stunt Truck, ARRMA® engineers extended the lorry to 20.28 inches - 1.08 inches longer than previous model — for increased stability and control.




WIDER TRACK
To deal with more aggressive bashing, the front and rear track width has been increased with new, wider arms to 17.72 inches - 1.72 inches more than the previous castaway™ 4X4 4S BLX Stunt Truck.








DESIGNED TOUGH
Features that add to the 4X4 4S BLX platform's unstoppable performance include a stronger composite chassis and retained hinge pin plates; protective skid plates in front and back; guiding with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber-shielded bearings throughout. Extended height dirt defenders limit the amount of dirt and debris that can reach the chassis tub. Front and rear bumpers offer defense against impacts.

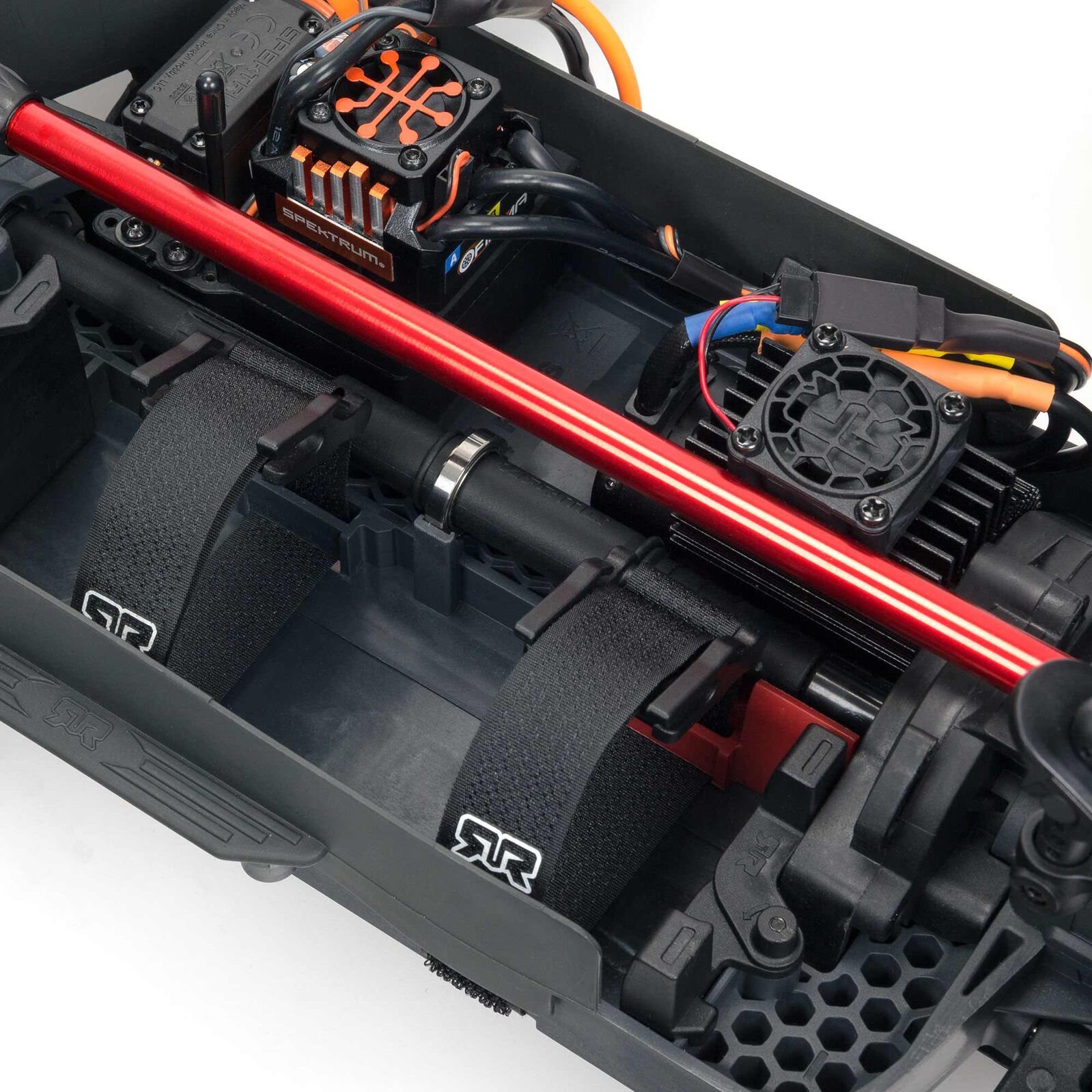

MODULAR DESIGN
The castaway™ 4X4 4S BLX Stunt Truck RTR includes the signature ARRMA® easy-access modular design. Separate, easily detachable chassis modules for the power system, electronic devices and differential components make regular maintenance quickly and simple.

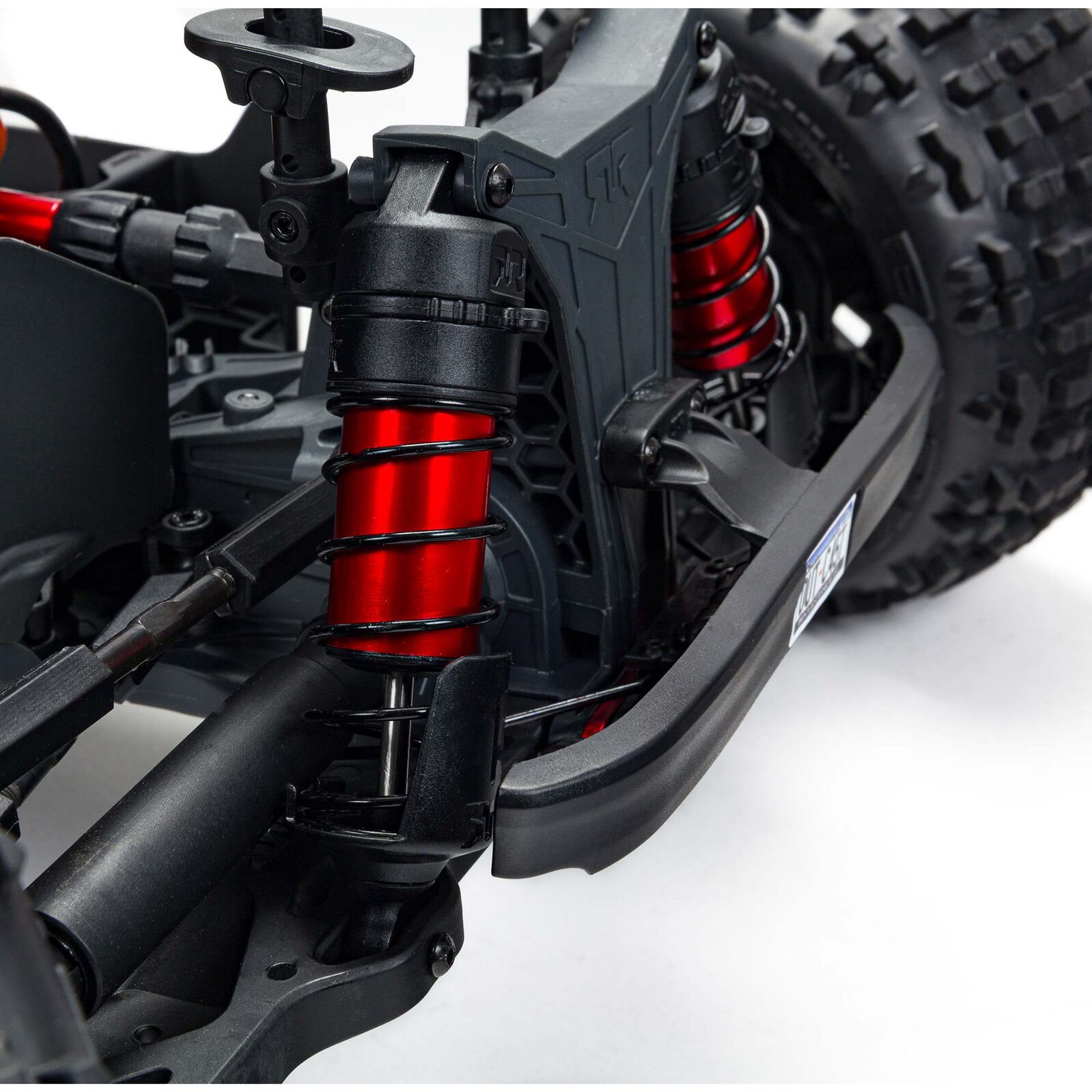

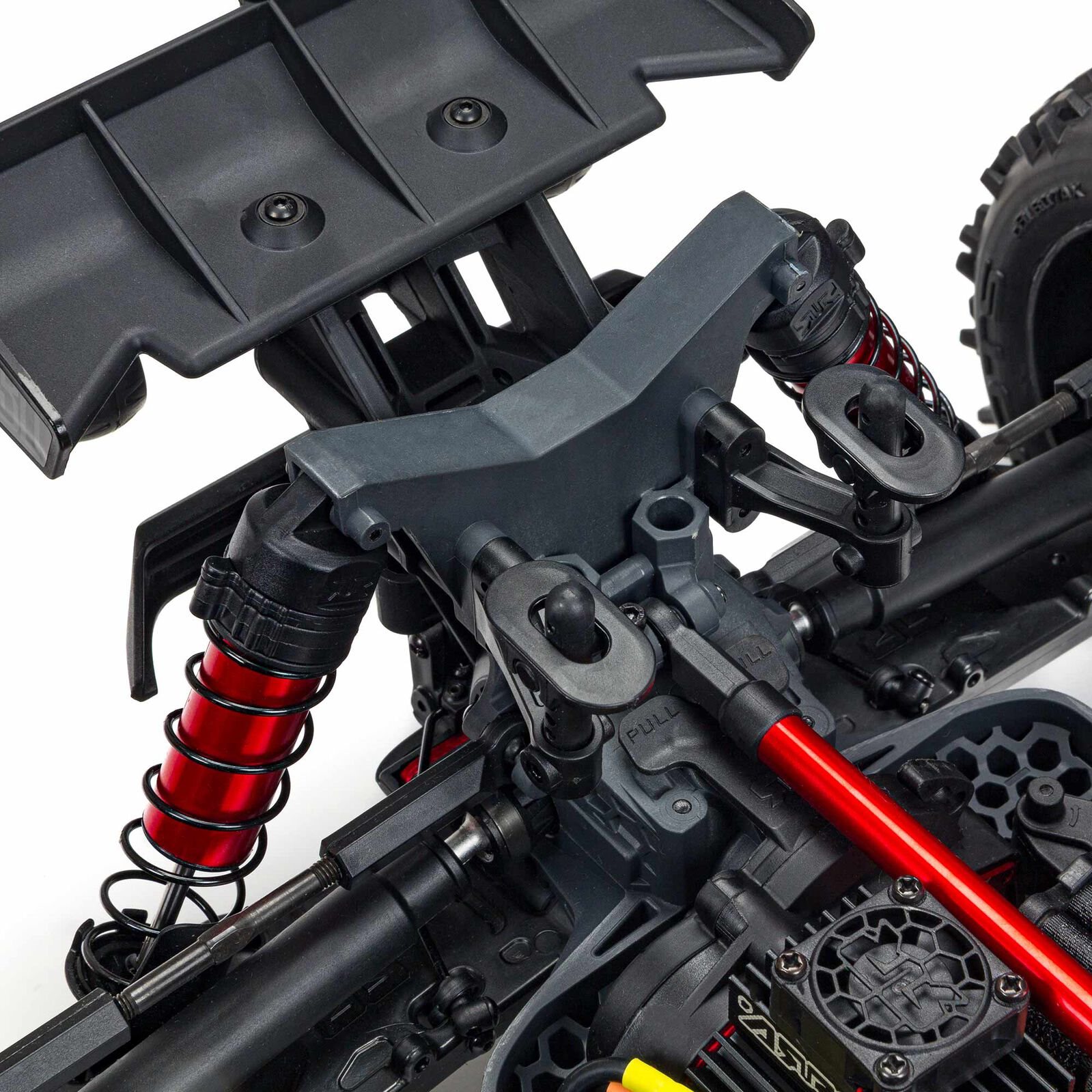

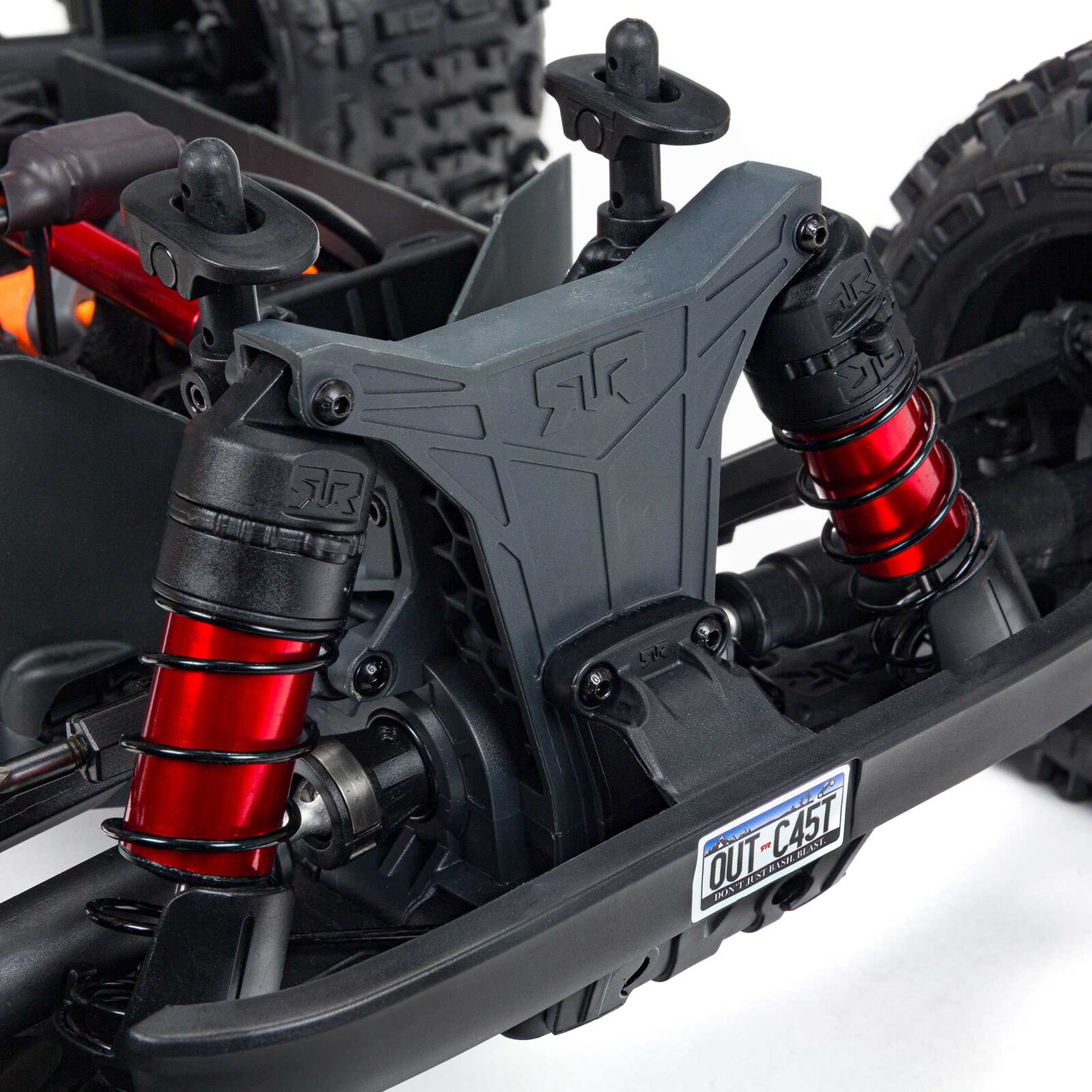

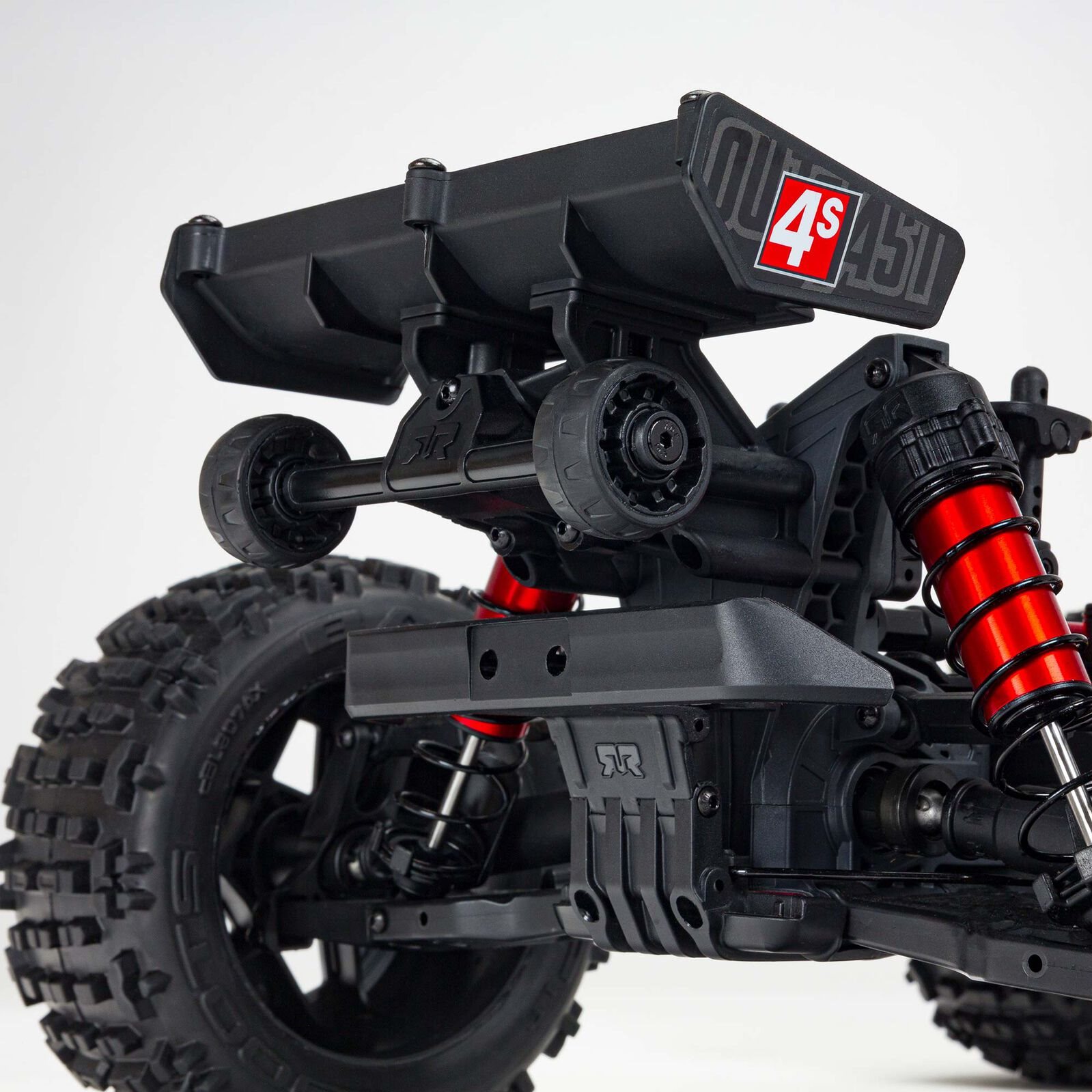

BIG BORE OIL-FILLED SHOCKS
Longer, aluminum-bodied, oil-filled big bore shocks are included and installed on higher shock towers. These plus the wider suspension arms offer the lorry longer, more plush suspension travel.




WHEELS & TIRES
The resilient, low-profile dBoots® Back-Flip tires with medium-compound foam inserts offer long-lasting performance and include an aggressive tread pattern for exceptional traction on a wide range of surfaces. The tires are installed on hard, 3.8" MT wheels with CNC machined, red anodized 17mm hubs.

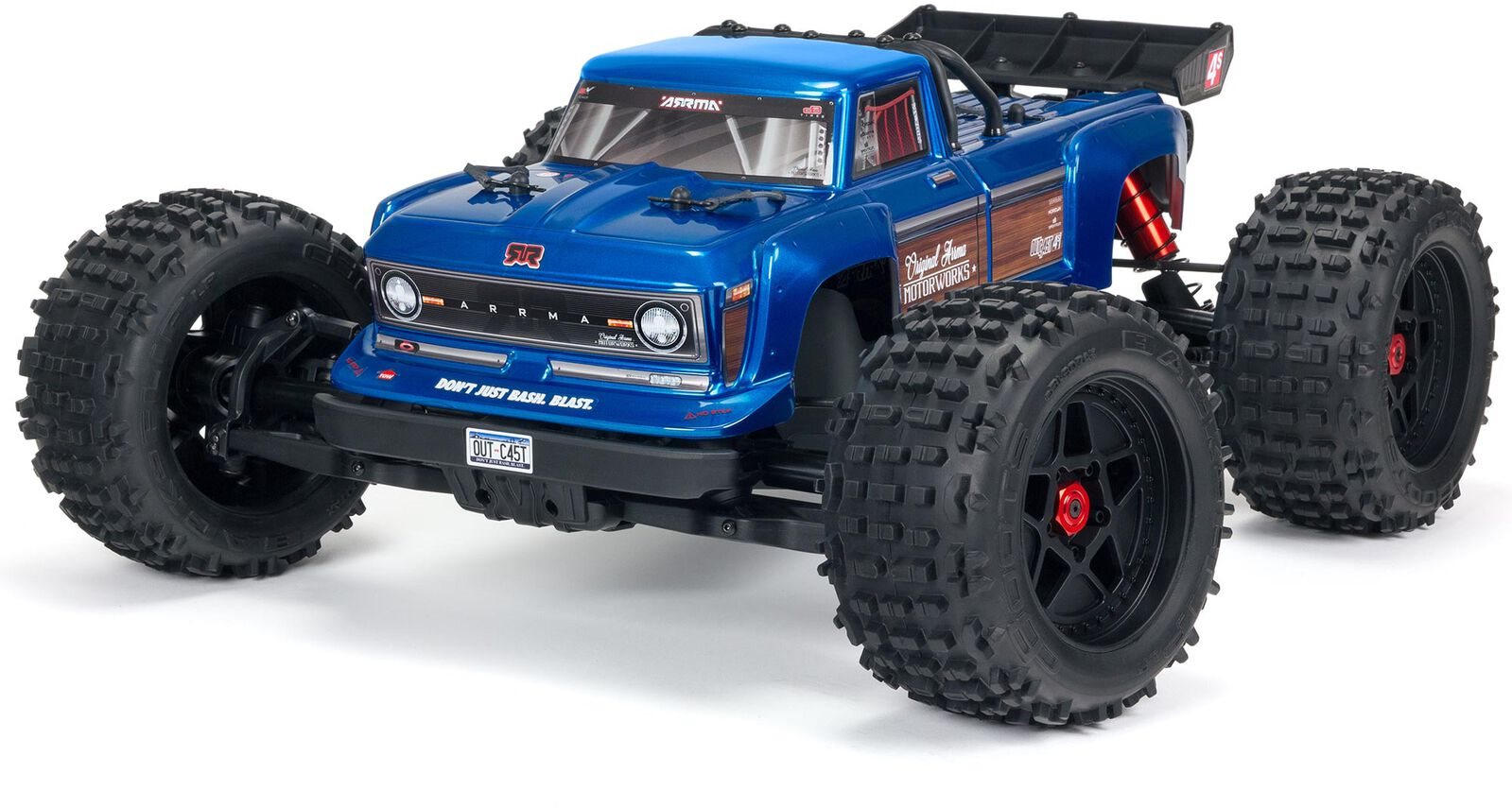

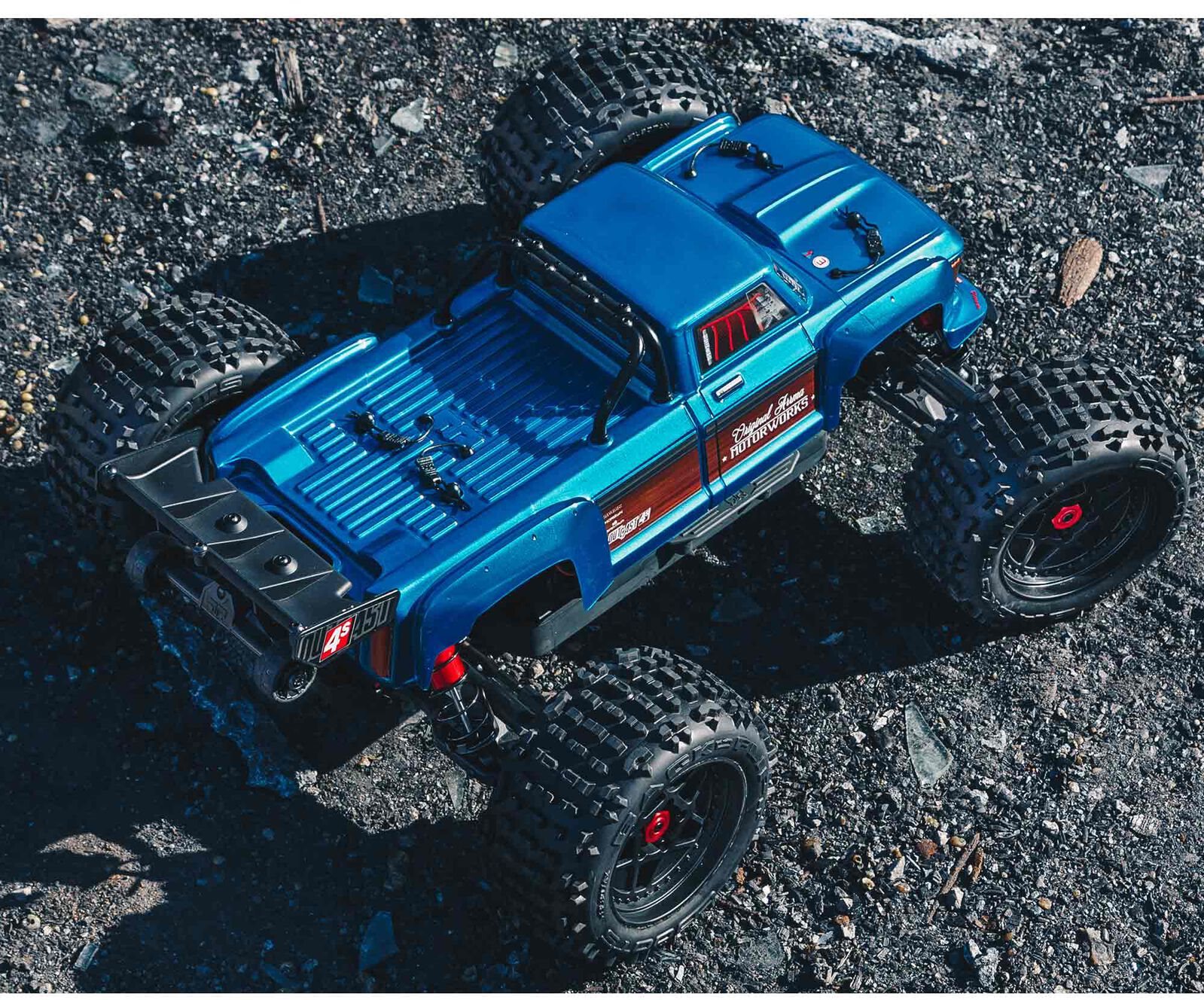

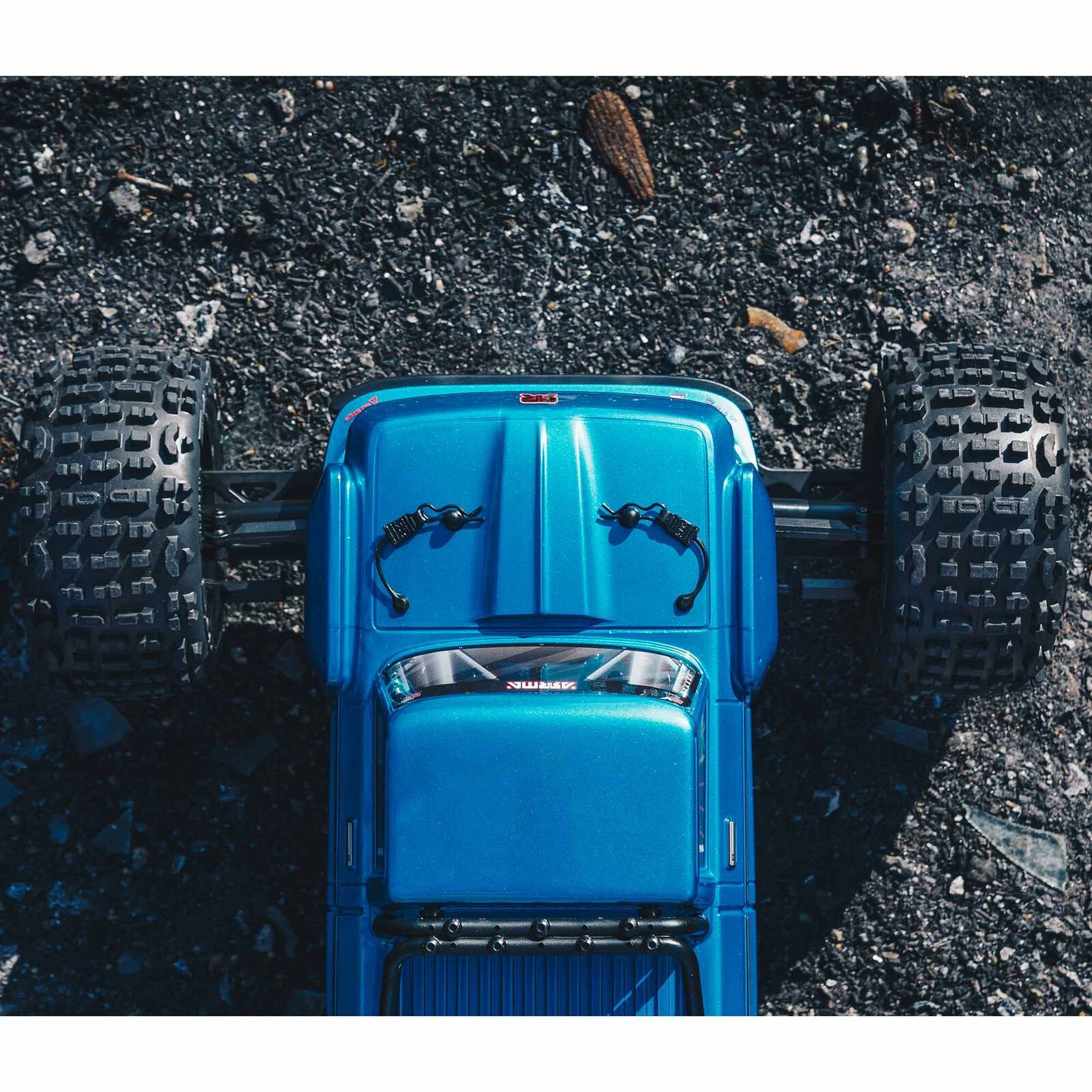

FINISHED TRUCK BODY
The sleek truck body includes a difficult, injection-molded rear wing and comes factory-finished in your choice of two exciting colors. Front and rear bumpers secure against impacts and a wheelie bar with rubber tires provides stunt potential.




Spektrum™ SLT3™ 2.4GHz 3-Channel Transmitter

Quick reaction SLT™ protocol

Foam wheel

Enhanced grip and trigger feel

Enhanced wheel and trigger force

2-Way thumb switch 3rd channel

50% and 75% Throttle mode (for novices)

Method® SLT™ receiver compatible








Spektrum™ SR315 3-Channel Dual Protocol Receiver

Quick reaction rate and exceptional variety

SLT™ and DSMR® protocol compatible

No-tool binding and protocol changing

Compact and light-weight tough case

Spektrum Smart telemetry compatible (in DSMR® mode and using Spektrum™ Dashboard™ app)





Spektrum™ S652 Digital Servo

32% more powerful and 5% faster than previous variation's ADS-15M servo for improved steering feel

Torque: 16.70 kg-cm (232 oz-in) @ 6.0V

Metal-Geared

Water resistant*








Spektrum™ Firma™ 120A Smart ESC

Forward/reverse/brake

Input voltage 11.1V-14.8V

Input connector IC5® with 12AWG, 220mm wire

Output connector 4mm female bullet with 12AWG, 150mm wire

Quick, effective 32-bit ARM M4 processor

Rugged plastic case with mounting tabs

Aluminum heat sink for high efficiency

Cooling fan

High-power BEC

Smart telemetry compatible

Water resistant*





Spektrum™ Firma™ 3668 2400Kv Brushless Motor

4 Pole / 4S

ARRMA® heatsink and cooling fan

Safe D pinion












* For details on waterproof standards, please see product instruction manuals.

Specifications

Approximate Assembly Time: No assembly required

Ball Bearings: Full set, rubber shielded

Battery: Sold Separately

Body: Painted, decalled and trimmed

Brakes: Essential with ESC

Battery Charger: Sold Separately

Chassis: Molded composite

Color Variant: Blue

Conclusion Level: Ready-To-Run

Differential: 2 Equipment Diffs

Drive Type: Forward/Brake/Reverse

Drivetrain: 4WD

Final Drive Ratio: 12.48

Front Track: 17.72 in (450 mm)

Equipment Pitch: 0.8m

Internal Equipment Ratio: 2.85

Max Battery Dimensions: 6.14x2.01x1.89 in (156x51x48 mm)

Motor Size: 3668-2400Kv

Motor Type: Brushless - Sensorless

Pinion: 13T

Power Type: Electric

Item Height: 8.86" (225 mm)

Item Length: 20.28" (515 mm)

Item Weight: 9.17pounds (4.17kg)

Item Width: 17.72" (450 mm)

Radio: Consisted Of

Rear Track: 17.72" (450mm)

Receiver: Consisted Of

Scale: 1/10

Servos: Consisted of

Shock Type: Aluminum body, oil-filled, coil-over springs

Speed Control: Consisted Of

Spur Equipment: 57T

Suspension: Independent

Innovation : Smart

Vehicle Type: Beast Truck

Water-Resistant: Yes

Wheel Hex Size: 17mm

Wheelbase: 12.32" (313 mm)
