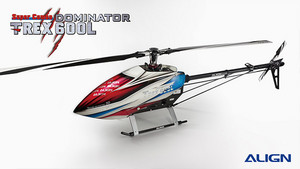

Align T-REX 600L Dominator Super Combo

Will be readily available soon.

















Introducing:
Geared up with Align?s brand-new generation GPro flybarless system, featuring CPU efficient in 20 times much faster processing power, along with brand brand-new firmware, and efficiency enhancing payment regimens; Permitting Gpro to offer faster and more exact response, reaching the peak of helicopter efficiency. GPro functions ergonomically adjustability through PC, in addition to iOS and Android mobile phone apps.
Powered by 750MX/530KV motor engraved with BOSS insignia, supplying amazing power output. The current BL815H and BL855H metal brushless servos are basic equipment, featuring exceptional torque, speed with unparalleled effectiveness and accuracy. These servos are extremely appraised by group pilots for their low operation heat, adding to significantly increased longevity.
Align?s 2014 flagship T-Rex 600L Boss, incorporates all the leading grade upgrades, and the brand-new generation GPro flybarless system, with stability and power exceeding all past expectations. The exceptional control feel, and appealing look, the T-Rex 600L Boss is the leading option for any enthusiasts!Standard equipment:
Gpro Flybarless System X 1 set
Castle EDGE HV 80 Brushless ESC x 1
750MX Brushless Motor(530KV) x 1
BL815H High Voltage Brushless Servo x 3
BL855H High Voltage Brushless Servo x 1

Specification:
Length: 1160mm
Height: 319mm
Width: 210mm
Main Blade Length: 600mm
Main Rotor Size: 1347mm
Tail Rotor Size: 260mm
Motor Drive Equipment:14T
Main Drive Equipment:118T
Autorotation Tail Drive Equipment: 131T
Tail Drive Equipment: 34T
Drive Equipment Ratio: 1:8.42:3.85
Weight(With Motor): 2900g Devices:
T-REX 600L BOSS Set x 1set
600 Carbon Fiber Blades x 1set
95 Carbon Fiber Tail Blade x 1set
750MX Brushless Motor(530KV) x 1
BL815H High Voltage Brushless Servo x 3
BL855H High Voltage Brushless Servo x 1
Castle EDGE HV 80 Brushless ESC x 1
Gpro Flybarless System x 1set

Radio transmitter and electronic equipment required for assembly:
Transmitter(7-channel or more, helicopter system)
Receiver(7-channel or more)
6S Li-Po 2600 ~ 4600mAh x 2 (3300mAh idea)
Digital Pitch Gauge/Dial Pitch Gauge

Gpro Programmable Flybarless System Includes :
ALIGN brand-new multifunctional Gpro flybarless system with active CPU, processing 20 times faster than previous generation. The freshly brand-new software structure enhances system payment, bring GPro up with exact and agile response, as well as keep up-to-date flying efficiency than ever.The essential is that makes use of with newest iOS and Android APP can be quickly and straight changed through mobile phone while at the field. New human oriented user interface permits hassle-free and rapid setup and installation.
Brand brand-new CPU, processing 20 times faster than previous generation, bring GPro up with exact and agile response.
Freshly brand-new software procedure structure enhances system payment and keep up-to-date flying performance.
Utilizes with newest iOS and Android APP that GPro can be quickly and straight changed through mobile phone while flying outdoors.
New human oriented user interface permits hassle-free and rapid setup and installation.
Superior flying characteristic remain the exact same flying control amongst T-REX 250~800 helicopters.
Full assistance receivers and satellites currently on the marketplace, consisting of S.BUS/X.BUS and DSM2/DSMX/DSMJ/DMSS.

Gpro Programmable Flybarless System:
Operating voltage range:DC 3.5V~8.4V
Operating existing usage:<100mA @4.8V
X and Y axis Operating Angle Range:-300~+300 degree
Z axis Operating Angle Range:-600~+600 degree
Sensor resolution:12bit
Supports 90/120/135/140 CCPM swashplates
Spektrum and JR Satellite antennas support (Replaces original factory receiver)
Futaba S.BUS/JR X.BUS system support
Rudder support 760μ narrow band servos
Supports multi-blade rotor heads
Engine speed governor range:10500-21000 RPM
Operating Temperature:-20~65 degree
Operating Humidity:0%~95%
Size:36.5x25.2x15.6 mm
Weight:11.5g
RoHs cerification stamp
