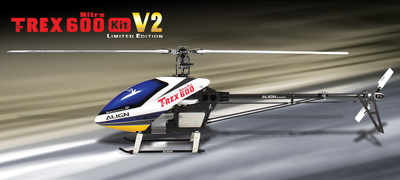

Align T-REX 600 Nitro V2 Kit

Functions:
1.New 600 sized programmable head assembly with 3 sets of favorable and unfavorable deltas, numerous Bell and Hiller blending ratios available, along with numerous flybar ratio settings.
2.The brand-new head assembly allow pilots to gain from the head?s greater control resolution along with stability level, pleasing the need of both extremely stable fixed classifications along with accuracy aerobatic classifications.
3.Dual 3K carbon plate side frame design for ease of maintenance and resistance to torque induced flex.
4.Extra radial bearing is added to the top of the main gear center to make sure stable rotation, and eliminate jamming of one way bearing.
5.Freshly created unibody stainless steel tail drive gear center mount, for more precise tail drive gear and greater tolerance.
6.New high quality carbon rudder control rod assembly using 5mm carbon rod and metal adapters, leading to improved rudder control accuracy.
7.Brand brand-new tail gear box, with visually pleasing product and improved maintenance.
8.Uses high efficient tail drive system.
9.High speed ranked thrust bearing in tail blade grips.
10.Highly efficient lightened engine cooling fan, reducing engine load and enhancing cooling efficiency.
11.Big diameter clutch system with unique setup approach for excellent balance, minimal vibration, and effective power transfer.
12.Forward mounted rudder servo to safeguard it from exhaust contamination.
13.95mm tail blades for sharp rudder response and excellent tail locking ability.
14.Distinct H random sample shaped electronic mounting platform for simple electronic mounting and defense.
15.Big capability 440CC fuel tank for up to 10 minutes of extreme 3D flights.
16.Starting and clutch supporting point makes use of 10mm one way bearing.
17.All up all set to fly dry weight is just 3200g (7lbs).
18.Main fuel tank created with fuel supply stabilization result.
19.Light weight extremely nimble flybar system.
20.Effect resistant fiberglass canopy with 3 point hook mounting system for ease of install/removal.
21.Developed with ideas from large helicopter competitions, for the best fixed and vibrant flight performance.

Users must have a particular principle of security to run the R/C helicopters.
Be sure to check out and adhere to related security notes of instruction manual prior to flying.

Requirements:
Length:1160mm
Height:398mm
Main blade length:600mm
Main rotor diameter:1350mm
Tail rotor diameter:240mm
Engine pinion gear:20T
Autorotation tail drive gear:180T
Drive gear ratio:8.5:1:4.5(E:M:T)
Flying weight:Approximate. 3200g
Color container:72x25.7x12.5cm
External container:74.5x52.5x39.5cm ,6sets/ctn

Accessories:
T-REX 600 Nitro V2 sets setX1

Radio transmitter and electronic devices needed for assembly:
Transmitter(7-channel or more, helicopter system)
Receiver(7-channel or more)
Basic servoX1
Line up 50 engineX1
50 MufflerX1
600D PRO Carbon fiber bladeX1
DS610 Digital servoX3
DS620 Digital servoX1
GP780 Head lock gyro comboX1
2 In 1 voltage regulator comboX1
RCE-G600 GovernorX1
Pitch gaugeX1
Super starterX1
Engine fuelX1
Fuel pumpX1
