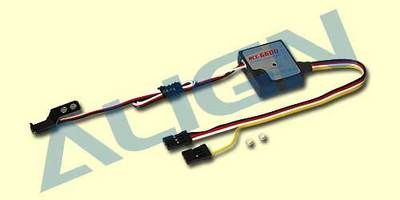

Align RCE-G600 Governor

This is the RCE-G600 Engine Guv from Align. It includes a simple to use, compact style with excellent speed control performance.

Features:

Speed resolution: 0.1RPM

Speed stability accuracy: within 1%(Consistent State)

Not suitable with S9251,S9256 and other 760?s servos.


Specifications:

Running voltage:DC4.5V-6V

Usage current:<20mA@4.8V

Direct detection of engine rotation speed.

Speed control variety:10500~21000RPM

Servo RWM output pulse width: 1~2ms Keep in mind: cannot be utilized with S9251,S9256 and other 760?s servos.

Operating temperature level variety:-20?C~85?C

Running moisture variety:0%~95%

Case size(body):28.5x26.2x9mm

Signal wire length:160mm

Sensing unit wire length:250mm

Weight:10g(including wires)

Devices:

(2) 4x1.5mm Magnets

(2) 2.6x6mm Socket button head screws

(1) Nut
