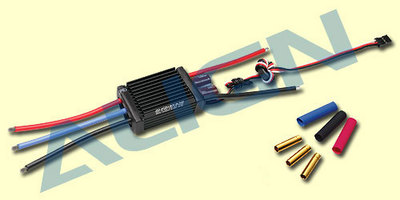

Align RCE-BL70G 70A Brushless ESC w/Governor Mode

This is the Align RCE-BL70G 70 Amp Brushless Electronic Speed Controller with Governor Mode.

Features: Large-sized high effectiveness heatsink makes the ESC steady under large current output.
5-6V step-less adjustable BEC output allowing a custom-made voltage setting to match the servo specs.
BEC output making use of changing power system, suitable for 7.4-22.2V (2s-6s) Li battery, with continuous current rating of 3A, and burst rating of 5A.
Three programmable throttle speed settings to support quick throttle reaction.
Include soft start and guv mode.
Little and compact PCB style for light-weight and simple setup.
Large heat sink for maximum thermal efficiency.
Extremely compatible: will deal with 98% of all brushless motors currently on the market.
Ultra-smooth motor start designed to keep up all type of brushless motors.
The power inlet makes use of a Japanese made "Low ESR" capacitor in order to provide steady source of power.
The throttle has more than 200 action resolution that supplies great throttle reaction and control.
If the aircraft needs to land or crash in an unexpected location and end up being lost, the pilot can make it possible for the Airplane Locator Alternative. The Airplane Locator Alternative is engaged by tuning off the transmitter. When the ESC does not receive a signal from the transmitter for 30 seconds, it will begin to send out an alarm to the motor. The sound of the alarm will help the pilot to find the aircraft. This choice will not deal with a PCM receiver that has SAVE function allowed, or with low sound resistant PM receivers.

Specifications:

Continuous current: 70A with proper air circulation

Surge current: 110A (5sec)

Supporting motor types: 2~10 pole in/outrunner brushless motors

Supporting optimum RPM: 2 poles=>190,000; 6 poles=>63,000

Supporting input voltage: 5.5V~25.2V

Supporting battery types: Li-Poly 2~6 cells

BEC output voltage: 5-6V step-less adjustment

Continuous current: 3A

Burst current: 5A

Size: 65x31x18mm

Weight: 72g

Consists of: (3) Line up standard 4mm socket terminal (max current 110A)
(3) 5x28mm Heat shrink tube
