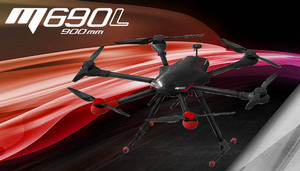

Align M690L Multicopter

Will be readily available soon.



















Specification:
Airframe Size: 900mm
Height: 446mm
Main Blade Length: 179mm
Main Rotor Size: 391mm
Weight(without battery): 3400g

Requirement Devices:
Multicopter Canopy
7 Inch Main Rotor x6 Sets
External Status LED
Pull back x2
BL4213(370KV) Brushless Motor x6
Motor ESC x6
PCU Power Control Unit x1
APS-M Multicopter Control Unit x1
GPS Sensing unit x1

Optional Devices:
Bluetooth Device
7 Inch Carbon Main Rotor x6 sets
5,000~12,000mAh Li-Polymer Battery 6S
G3 3 Axis Gimbal
OSD+FPV Video Transmitter
FPV Display

APS-M Automatic Flight System Introduction:
Brand new APS-M Control Unit with exceptional performance through cutting edge information technologies, utilizing high precision sensing units and modern-day system control subroutines. Support quad(4), hex(6), and octo(8) rotors. Flight modes include attitude, GPS velocity, GPS angular, intelligent, and handbook. In addition, it includes failsafe auto return house, low voltage failsafe (through LED sign and auto Return Home), OSD signal output, gimbal control, and Sight (POI) function.
Suitable with PC and Bluetooth user interface, might be quickly adjust flight specification and update firmware at any time.

APS-M Automatic Flight System Features:
Brand new APS-M multirotor auto-pilot system with higher performance, precision sensing units and exceptional dependability platform.
APS-M supports 4, 6, and 8 rotors multicopters, with flight modes such as Handbook, Mindset, GPS (angular), GPS (speed).
Geared up with automated return house function with remote activation ability from R/C transmitter. When RC transmitter signal is lost, multicopter will immediately fly back to house position.
APS-M provides 3 intelligent flight modes: CFO, HCL, and POI.
Provides real-time OSD flight information output function.
RoHS certified.
Suitable with PC and Bluetooth user interface, might be quickly adjust flight specification and update firmware at any time.
Likewise fully support with Futaba, Spectrum and JR S. BUS/S.BUS and DSM2/DSMX/DSMJ/DMSS system.

APS-M Automatic Flight System Specification:
Input Voltage:DC 4.5~8.4V
Running Current Intake:<250mA @ 4.8V
Operating Frequency：400Hz
Operating Temperature：-20℃~65℃
Hovering Precision (Depending on Satellite Status)：Horizontal ?1m Vertical ?1m
Maximum Flight Speed：Horizontal 15m/sec Vertical 6m/sec
Maximum Altitude Restriction：700m(1640ft) above the takeoff point
Maximum Angular Speed：
Aileron 115?/sec
Elevator 115?/sec
Rudder 145?/sec
Maximum Tilting Angle：30 degrees
Supports External Peripherals："G2/ G3 Gimbal、OSD+FPV Video Transmitter "
Supports Multicopter Configurations："4 rotors +, 4 rotors X, 6 rotors +, 6 rotors X, 8 rotors +, 8 rotors X."
Dimension：49x34.3x20mm

PCU Power Control Unit:
Input Voltage：13.2V~25.2V(4S~6S Li-Po)
Operating Frequency：500KHz
Dimension：62x35x26mm

BL4213 Motor 370KV(RPM/V):
Input Voltage：DC 22.2V
Max Continuous Current：25A
Max Continuous Power：550W
Stator Arms：12
Magnet Poles：14
Dimension/Weight：φ4xφ52x33mm / 185g

Motor ESC:
Input Voltage：13.2V~25.2V(4S~6S Li-Po)
Max Continuous Current：40A
Dimension：74.2x27x12.7mm
