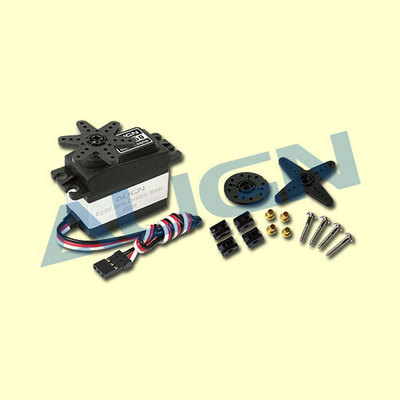

Align DS650 Digital Tail Servo

This is the Align DS650 Digital Tail Servo, and is meant for use as a rudder servo on T-Rex 600 and 700 class helicopters.

Align DS650 Digital Servo Features:

Ultra-speed servo for instantaneous tail control response. (0.048sec/60 deg).
12 Bits 4096 signal resolution for smooth movements.
Ultra Efficiency Coreless Motor with fast response and low current.
Hardened high strength super-alloy equipments that increase the lifetime.
Aluminum alloy mid case building for instant heat dissipation, keeping servo's high efficiency.
Supports digital & analog control signal.
Powerful and accurate servo, ideal for T-Rex 600/700 rudder use.

Align DS650 Digital Servo Specifications:
Stall torque: 55.54 Oz.In. @ 4.8V (4.0kg.cm), 69.43 Oz.In. @ 6.0V (5.0 kg.cm)
Movement speed: 0.058 sec/60? (4.8V), 0.048sec/60? (6.0V)
Ranking voltage: DC 4.8-6V
Temperature level range: -4?F to 140?F (-20?C ~ +60?C)
Dimension: 40.3x20.1x36mm
Weight: 56g

Consisted of in box:

(3) Servo rudder piece
(1) Set screw
(4) Rubber damper
(4) Brass grommet
(4) Tapping screw for servo
