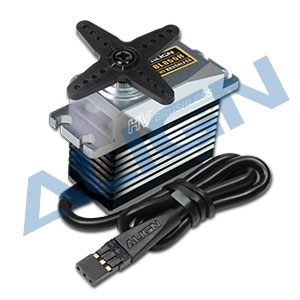

Align BL855H High Voltage Brushless Servo

Suitable for Trex550/600/700/800

Instructions:
Developed particularly for helicopters,uses brushless motor for fast speed, high torque and very efficiency reaction, permitting helicopter to perform with faster and higher accuracy. Brand name new high voltage brushless servo geared up new CNC machined aluminum case, not just showed top of the line servo aesthetics, but likewise integrate heat sink function and best defense for the servo.
Rudder servo with 0.028sec/60? ultra high speed reaction, pressing the extreme.
Makes use of brushless motor style for fast speed, high efficiency. And with the absence of brush wear, the durability of servo is greatly increased.
Supports 8.4v high voltage to offer ideal speed and torque performance of the brushless servo.
Developed particularly for helicopters, with highest specs on the marketplace: 0.028sec/60?ultra quickly speed and 12.5kg-cm monstrous torque, permitting helicopter to perform with faster and higher accuracy.
Ultra high 12 bits signal resolution for excellent accuracy and smoothness.
Hardened high strength superalloy equipments that increase the life time.
Brand name new high voltage brushless servo geared up new CNC machined aluminum case, not just showed top of the line servo aesthetics, but likewise integrate heat sink function and best defense for the servo.
Supports both analog and digital control signals.
Suitable for T-Rex 550/600/700/800 rudder use.

Specifications:
Stall torque:8kg.cm(6.0V)
Stall torque:10kg.cm(7.4V)
Stall torque:12.5kg.cm(8.4V)
Movement speed:0.04sec/60?(6.0V)
Movement speed:0.03sec/60?(7.4V)
Movement speed:0.028sec/60?(8.4V)
Ranking voltage:DC 6-8.4V
Temperature level variety:40?C
Measurement:40 x 20 x 39 mm
Weight:73g

Material:
Servo rudder piece x 3
Set screw x 1
Rubber damper x 4
Brass grommet x 4
Tapping screw for servo x 4
