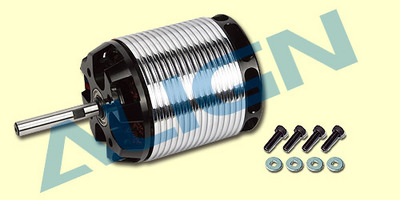

Align 750MX Brushless Motor(450KV) RCM-BL750MX

Ideal for T-REX 700E helicopters.

Instructions:
750MX(450KV) motor incorporates radial fan in its end bell, developing effective air flow to dissipate heat. Tweaks to motor style and reduction in weight not just adds to significant power increase, the high performance cooling system allows cooler operating temperature level during and after flights when compared with motor of previous generation.
The 750MX(450KV) motor armature had an unique balance adapt to enhance the major shaking problem that other small motors have.
Upkeep free, high torque, high performance, stable and quiet.
High-speed ball bearings, effective magnetic outrunner rotor.

Particularly designed for F3C type of flying, the 750MX (450KV) motor has wider speed variety to optimize performance of the motor and speed controller. In addition, the lower 450KV lead to lower heat and existing construct up.


Specifications:
Input voltage: DC11.1V-50.4V
Max continuous current: 100A/165A(5sec)
Max output power: 4400W/7260W(5sec)
KV worth: 450KV
Stator Arms: 12
Magnet Poles: 10
Dimension: 6x52x61.5mm
Weight: 452g

Devices:
Socket screw(M4X10)X4
Washer(Φ4XΦ10X1)X4
4mm gilt terminal x 3
