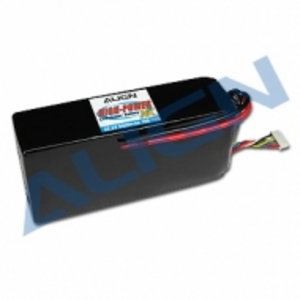

Align 6S1P 22.2V 8500mAh/30C (Align HBP80001 | AGNHBP80001)

Model: Align HBP80001
Dist. #: AGNHBP80001   SKU: AGNHBP80001

Be the first to review this product. (Write Review)

Out of stock

Price:  $272.99

This item will earn you 273 reward point(s).
273 points = $5.46 off your next order. Learn More

Updated on Oct 2, 2025 12:43:00 PM

6S1P 22.2V 8500mAh/30C...
Specs:
These high discharge lithium polymer batteries are designed to keep performance in series setup, and can be charged separately through stabilizing plug. The extreme high capacity are catered specifically for applications needing longest flight period, suitable for T-Rex 800E and T-Rex 800E aerial photography ship usage.
Max Continuous Discharge: 30C(255A), Burst Discharge: 50C(425A). Typical operating temperature level is approx. 40-65?C(within 80% of rated discharge). Max. temperature level: 80?C.
Recommend to release the battery within 80% of rated discharge, keep 95% capacity when over 100 cycles, keep 90% capacity when over 150 cycles.(The cycle life and efficiency will minimize due to high current, high temperature and over-discharge)
Output:22.2V8500mAh 188.7Wh(6S1P)
Measurement:175x85x45mm
Weight:1280g

NOTE:
When utilizing high energy Li-poly Battery, please do not over-discharge, over-charge batteries, or result over-high temperature level. Discharging capacity can't exceed 80% of the max capacity after full charging to guarantee an excellent cycle performance.Recommend to full charge a brand new battery prior to utilizing and just release the battery 50% for first 5 times to make an excellent efficiency of the battery. Please make it a practice to always count time for flight, or please set a low voltage defense on ESC (Cell voltage after stopping utilizing can not reduce than 3.4V). Do not use the battery at inadequate of voltage.

Do not expose batteries to sunlight or shop/ charge batteries at the temperature level as much as 35℃ in a airtight car. The environment high temperature might trigger the damage or the risk of burst. If the battery becomes hot while high current discharging or flying, please do not charge the battery immediately. Wait to cool off(about 20 minutes), then inspect to recharge. If versus follow the initial factory utilizing guidelines, possibly trigger the battery to inflate or any hazardous accident occurs.

Do not leave the battery charger is running ignored as it may trigger a fire.
