Align 600DFC Main Rotor Head Upgrade Set (Align H60239A | AGNH60239A)

Model: Align H60239A
Dist. #: AGNH60239A   SKU: AGNH60239A

Be the first to review this product. (Write Review)

Out of stock

Price:  $69.99

This item will earn you 70 reward point(s).
70 points = $1.40 off your next order. Learn More

Updated on Oct 1, 2023 08:15:56 AM

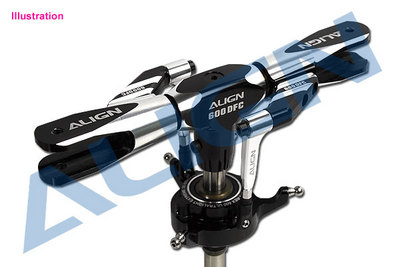

600DFC Main Rotor Head Upgrade Set...
This is an optional Align 600DFC Main Rotor Head Upgrade Set, and is meant for use with the Align T-Rex 550E V2 and 600E Pro flybarless helicopters. Using the 700 DFC?s style, the 600 DFC flybarless rotor head system uses a very low CG style, lowering in flight resistance, in addition to increasing flight responsiveness and precision, supplying superior 3D performance and inconceivable flight speed with extremely attractive design.
Extreme low CG and short main shaft style significantly minimizes flight resistance, enhancing the T-Rex 600?s 3D performance and speed.
Two part removable main blade grips for ease of maintenance and assembly.
Re-designed linkage rods. Total assembly increases linkage rod rigidity, allowing the pitch slider (fan) to be omitted, leading to a head assembly that is simplified and rigid.
Upgrading to the 600DFC rotor head assembly is extremely easy; just change the head block included in the 600DFC kit, change the blade grip pitch lever with the brand-new 600DFC lever, connect the 600DFC linkage assembly, and change the main shaft with 600DFC main shaft. Existing swashplate and more recent main rotor grips are kept in the upgrade.
Appropriate for T-REX 550E /600E PRO flybarless system.
Weight: 161g
Consists of:
(1) 600 DFC Main Rotor Head Assembly (44.45x43x17mm)
(2) 600 Feathering shaft sleeve-black (8x10x31mm)
(2) 600 Damper rubber-black (7.9x13x6.5mm)
(1) M3 Set screw
(3) Socket collar screw (M3x19mm)
(2) 600DFC Main Blade Grip Arm
(2) 600DFC Main rotor grip arm integrated control link (9x11x37.2mm)
(2) Collar (3x4.9x5mm)
(4) 683ZZ Bearing(3x7x3mm)
(2) 700DFC Linkage rod A (M3x14mm)
(2) 700N Elevator ball link
(1) 600DFC Main Shaft (10x163.3mm)
(4) Socket collar screw (M3x6mm)
(2) Washer (3x4.8x0.3mm)
(2) 700N Linkage Ball B (5x12mm)
