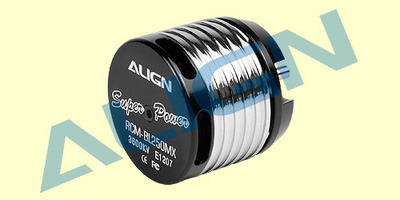

Align 250MX Brushless Motor(3600KV) RCM-BL250MX

Appropriate for all T-REX 250 class machines.

Instructions:
1.The 250MX motor integrates radial fan in its end bell, creating effective air flow to dissipate heat. Tweaks to motor design and decrease in weight not only contributes to remarkable power increase, the high effectiveness cooling system allows cooler operating temperature level throughout and after flights when compared to motor of previous generation.
2.The 250MX motor armat ure had a special balance adjust to enhance the major shaking problem that other tiny motors have.
3.High torque, high effectiveness, low temperature level variation, steady and quiet.
4.Japanese made high-speed ball bearings, effective magnetic outrunner rotor.

Specs:
Input voltage:DC7.4-11.1V 2-3cell Li-Po
Max continuous current:16/24A(5sec)
Max output power:Approximate. 170w/250W(5sec)
KV worth:3600KV
Dimension:spindle 2.5xΦ25.5x22.4mm
Weight:Approximate. 33.5g

Devices:
Socket button head screw(M2.5X5mm) x 2
ALIGN standard 3mm gilt terminal x 3set
